hot sale new small lithium polymer batteris 3*8*15mm

Specifications

hot sale new small lithium polymer batteris 3*8*15mm technical parameters:

1. Typical Capacity: 10mAh
2. Cell Outer Dimension: 30mm (T) x 8mm (W) x 15mm (L)
3. Nominal Voltage: 3.7V
4. Discharge cut-off voltage:3.0 V, the over-discharge detection voltage of PCM
5. Charging Current (Max. ): 1.0CA
6. Charging Voltage: 4.2V
7.  Operating environment: Charging, 0°C ~ 45°C ; 65±20%RH

8. Discharging tempature: -20°C~60°C ; 65±20%RH
9. Storage environment : - 20°C~45°C    65±20%RH  storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;

10. Cycle life: >500 times
11. Warranty: 1 year

12. Weight: about 5g

Main Features:

1) High energy density,good capacity,

2) Better safety and reliable(with PCM),

3) Long circle life,no memory,never explosion,

4) Stable performance,environmental,capacity and size could be customized

Applications:

1. Communications device Mp3.walkie-talkies,MP4,bluetooth

2. GPS,PDA,Tablet pc

3. Medical device  a portable monitor,blood analyzer…

4. Flashlights,mine lamps

Charging Attention:

1.  Charging current and charging voltage should be less than specified in the Product Specification.

2.  The charger shall be designed to comply with Specification.

3.  It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.

Notice:

1.Our battery is sent out with a little or no power, so please charge it for about  3 - 4 hours before using.When we shipement, we only charged 30-50% power.
2  Do not overcharge or overdischarge batteries .It will decrease the batteries’s service life.
3  Do not short circuit,incinerate and disassemble batteries.
4  Do not impact the battery.
5  Do not drop of cause unnecessary shocks to the batteries
6. Do not carry loose batteries in a pocket or purse with metal objects like coins,paper clips etc.
7. Do not use inferior charger to recharge this battery in case of damaging the battery.
8. Do not put the battery in the charger too long.
9. Put it beyond the reach of children.
10.The picture only reference, detailed picture will see the actual battery.

Different sizes and different capacities can be ordered by the requirement of clients.

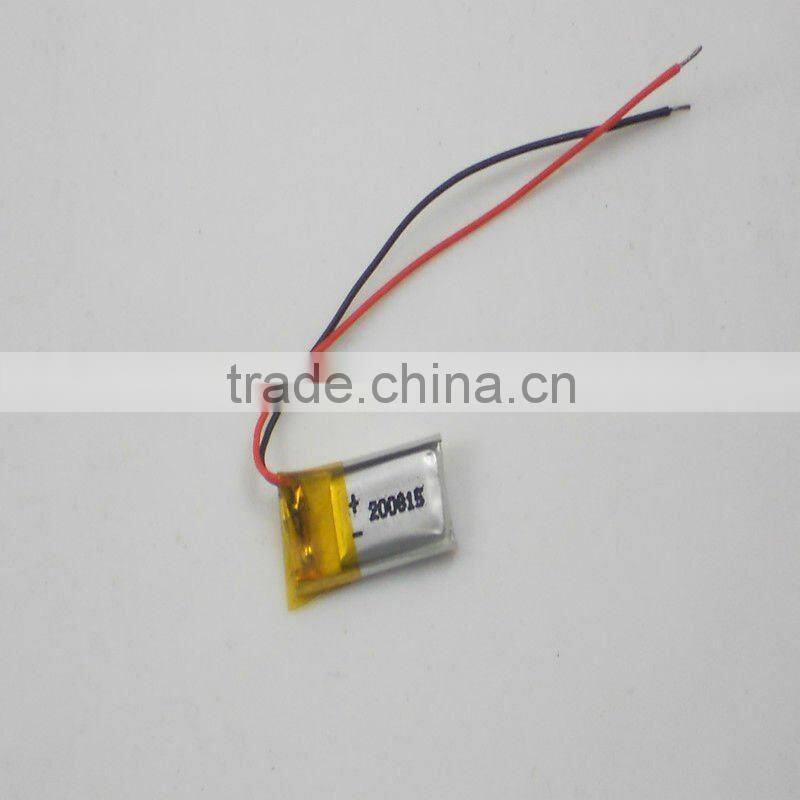

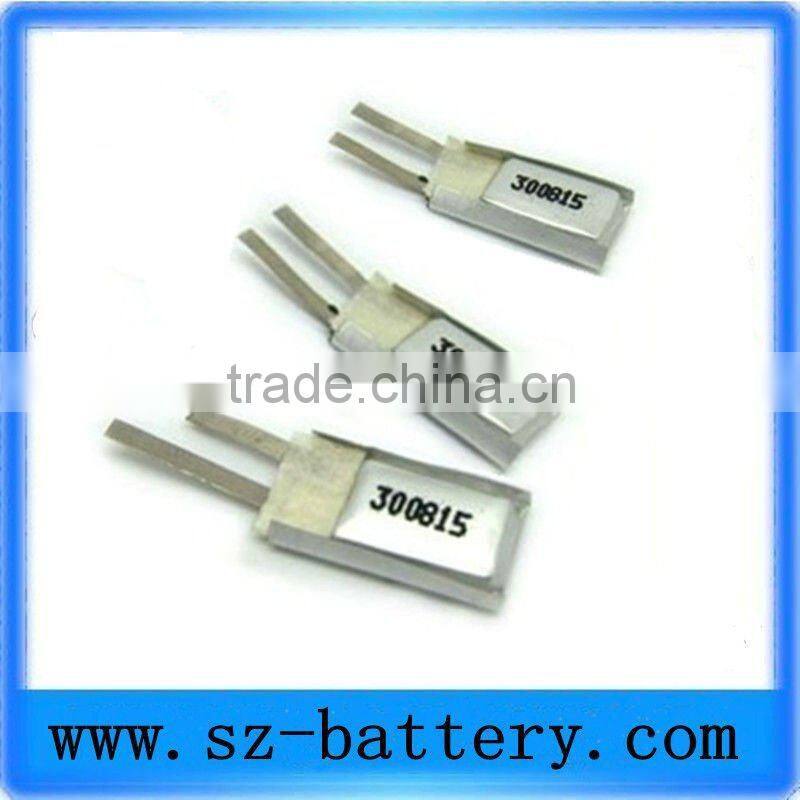

                                    new small lithium polymer batteris 3*8*15mm  pictures:
