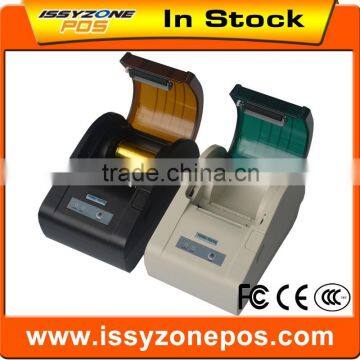

I58TP05 58mm Thermal Mobile Portable Msr Reader Label Printer Ticket

Feature:

1. Low power consumption,Low operating costs (no ribbons, ink cartridges)

2. Parallel Port/ Serial Port/ USB/Lan

3. 90mm/s high speed print

4. 58mm thermal print

5. Auto paper loading structure, easy to use and maintain

Specification:

Print

Printing Method

Thermal Line

Printing Speed

90mm/s

Charater

384dots/line

Print command

Compatible ESC/POS Command

Effective Printing Width

55mm

Character

Print Font A

ANK:12*24dots, 1.5(W)*3.0(H) mm

Print Font B

ANK:9*17dots,1.1(W)*2.1(H)mm

Simplified/Traditional

24*24dots,3.0(W)*3.0(H)mm

Paper Spec

Paper Type

Thermal paper

Paper Width

58mm

Paper Roll Diameter

75mm

Paper Thickness

0.06 to 0.08mm

Paper Supply Method

Drop-in paper load

Reliability

TPH

100km

Autocutter

Full automatic/half automatic

Barcodes

JAN13 (EAN13)/JAN8 (EAN8)/CODE39

Driver

Win 9X ,Win 2000 ,Win 2003,Win XP,Win Vista,Win 7,Win 8

Sensor

Paper Near End Sensor, Paper End Sensor

Drawer Port

1 port

Interface

Parallel Port/ Serial Port/ USB/Lan

Frequeency

2.412-2.484GHZ

Transmission Distance:

100M/outside,50M/inside

Power Supply (Adapter)

Input

110V/220V,50-60Hz

Output

DC: 12V/ 3A

Package

Gross Weight

1.3kg

Gross Weight for shipment(8pcs/Carton)

21kg

Printer Dimension (WxLxH)

190*125*112mm

Package Dimension(1pc)

29*21*17(cm)

Carton demension(8pcs/Carton)

60*44*36(cm)

Environment

Operating Temp

0~ 45 °C

Storage Temp

-10~60°C

Operating Humidity

10~80%

Storage Humidity

10~90%

Application

Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket
