Home > Products > Lithium Polymer Battery > rechargeable 3.7V small li-polymer Battery 280mAh

rechargeable 3.7V small li-polymer Battery 280mAh

FOB Price

US$ 3.5 - 4.7 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Model:501835 Size:T5.0x18x37mm PCM
2.MOQ:100pcs samples request is acceptable
3.Warranty:1 year
4.small li-po battery 280mA

1.Specification for 3.7V 280mAh Rechargeable Li Polymer Battery

Model	HHS-501835
Nominal voltage	3.7V
Nominal capacity	280mAh
Size	Thickness × Width × Length (mm)
Size	5.0±0.5×18.0±0.5×37±0.5(with PCM)
Main characteristics	High energy density,good capacity,better safety and reliable(with PCM),long circle life,no memory,never explosion,stable performance,environmental,capacity and size could be customized
Weight	about 57g
Max charge current	1C
Charging method	charge with constant current 1C to 4.2V,then charge with constant voltage 4.2V till charge current less than 0.01C
Max discharge current	1C
Discharge cut-off voltage	3.0 V, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
Operating environment	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V
CycleLife (80% Prime Capacity) :	>500times
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.

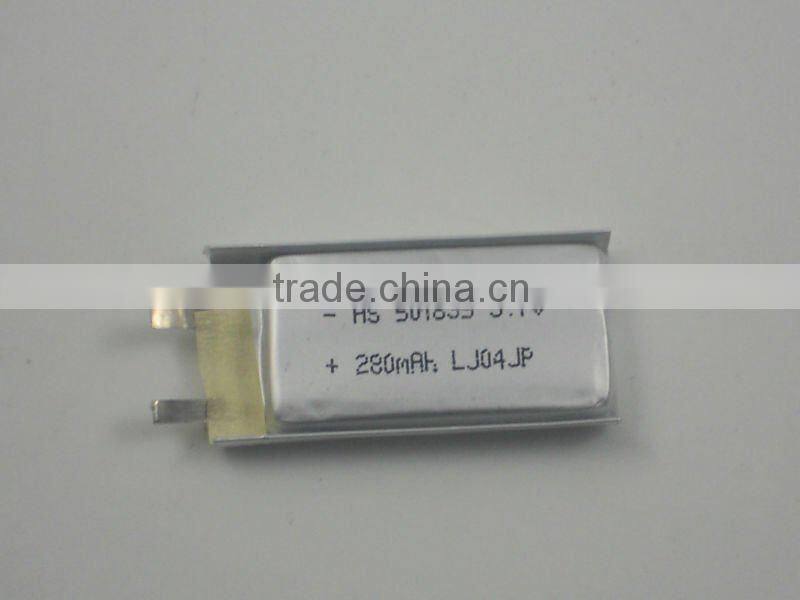

2. Picture without wire for this battery

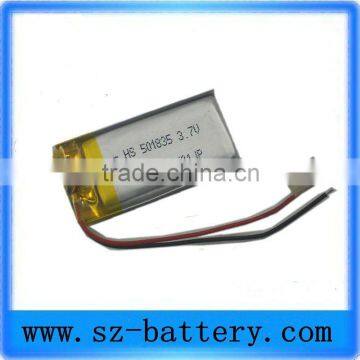

3. Picture with wire for this battery
