Product Details
| Products Status | Stock | Type | Barcode Scanner | |
| Scan Element Type | CCD | Colour Depth | 42 Bit | |
| Interface Type | USB | Max Paper Size | Automatic Barcode Scanner | |
| Optical Resolution | 4 mil | Scan Speed | 200times/sec | |
| Brand Name | ISSYZONEPOS | Model Number | IOBC004 | |
| Place of Origin | Guangdong, China |
Product Description

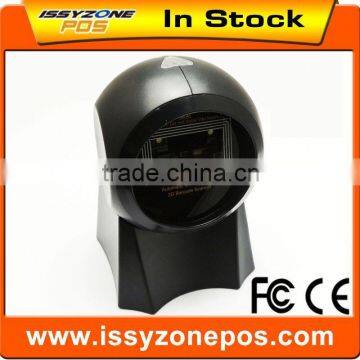

IOBC004 1D/2D Barcode Scanner Hands-free Omnidirectional Automatic Barcode Scanner
| Light source | White LED |
| Sighting device | Red LED, 617nm |
| Indicator | Green=decoding successfully; red=fail to decode |
| Interface | KB, USB |
| Scanning type | Image |
| Scanning angle | Angle of pitch ±70°,angle of inclination ±60°,rotation ±180° |
| Sensing distance | 25cm (250cm2); 20cm (100cm2); 5cm (small area) |
| Sensing speed | 200times/sec |
| Sensing delay | 2sec/time |
| Discernible printing contrast | Minimum 30% contrast |
| Decoding capability | All standard 1D&&2D bar codes |
| Size | 110mm x 100mm x 150mm |
| Weight | 120g |
| Input voltage | 4 ~ 5.5 V DC |
| Operating power | 2W; 400 mA @ 5V - typical |
| Standby power | 0.45w,90mA@ 5V-typical |
| DC power | Class2;5.2VDC@1A |
| EMC | EN55022, EN55024 class B |
| LED safety certificate | IEC62471 |
| CB | IEC60950 |
| Other certificate | CE, FCC, ROHS, FDA |
| Operating temperature | 0°C - 40°C |
| Storage temperature | -40°C - 60°C |
| Humidity | 5%-95% relative humidity (non-condensing) |
| Light level | 0 - 100,000LUX |
| Shock resistance | Designed to withstand 2 meters drop on concrete surface |
| Dust proof | Seal to prevent air dust |
| IP level | IP40 |
| Bar code density | Depth of field |
| 5 mil Code39 | 33 - 95 mm (1.3 - 3.7 in.) |
| 13 mil UPC-A | 32 - 255 mm (1.3 - 10.0 in.) |
| 20 mil Code 39 | 35 - 355 mm (1.4 - 14.0 in.) |
| 6.7 mil PDF417 | 30 - 95 mm (1.2 - 3.7 in.) |
| 10mil Data Matrix | 30 - 100 mm (1.2 - 3.9 in.) |
| 15mil Data Matrix | 21 -162 mm (0.8 -6.4 in.) |
| 20mil QR | 23 -200 mm (0.9 -7.9 in.) |
| Resolution | 4 mil |
| Tolerance | 100mm/sec 13 mil UPC |
| Technical parameters are subject to be changed without notice! | |
