New Type Paint Thickness Gauge for Paint Shops and Electroplaters
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
Paint Coating Thickness Metere of Both Principles Magnetic Induction and the Eddy Currents
-
Hand Held Ultrasonic Steel Thickness Measuring Gauge Meter
-
Made in China Steel Ultrasonic Thickness Measuring Gauge Tester Meters
-
High Accuracy Non-destructive Coating Thickness Checking Tool Gauges
-
China Made Popular Coating Thickness Checking Tool
-
1500um Digital Non-destructive Coating Thickness Measuring Gauge
Product Details
| Place of Origin | China | Brand Name | PULANI | |
| Model Number | 2013PLN-YT |
Product Description
Specifications
1. Large screen
2. standard menu which more easy to operate
3. timely to display the statistics data
4. kinds of color could be choose
paint coating thickness gauge
This compact gauge can be used for non-destructive coating thickmess measurement of non-magnetic coatings, e.g. paint ,chrome on steel. and insulating coating , e,g. paint and anodizing coatings on non-ferrous metals.
The internal probe can work on both principles, magnetic induction and the eddy currents. The probe can automatically detect the substrates type ( magnetic or not ) , and calculate the coating thickness and display it fast.
There are fice data groups and readings will be automatically storaged to memory for general groups( not for direct group). each group have indiviual statistics, alarm limit settings and calibration. User can reall and delete spefificed reading easily.
User do all operations via standard menu so easily . User can press the cal buttom to start mult-point6 calibration freely.

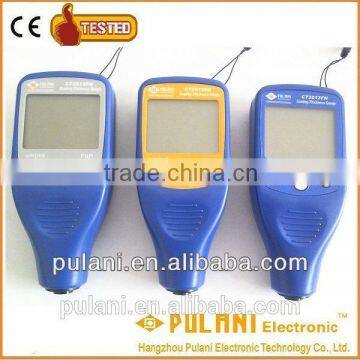

PLN-CT2013FN(update type)
Coating thickness gauge ( Dry film Thickness gauge)
The type CT2013FN film thickness gauge allows for measurement of a variety of products.
It is built in both of FE and NFE Probe in one gauge,and could recognized the substrate
automatic.

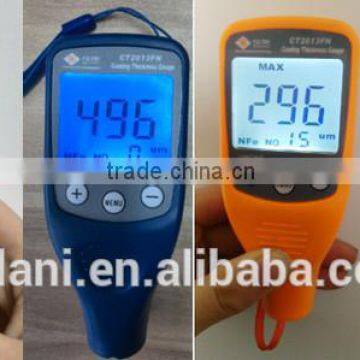

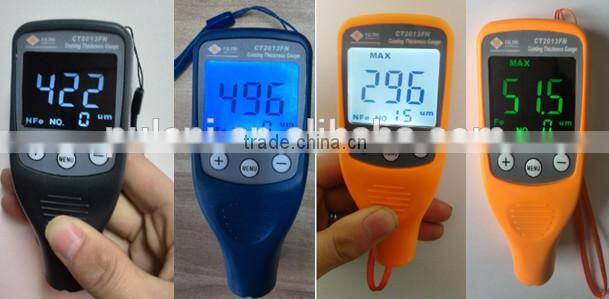

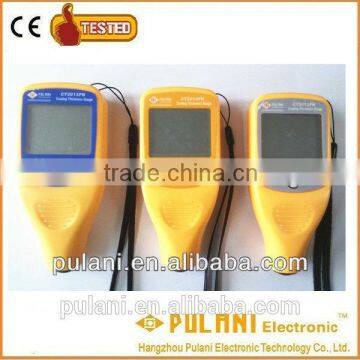

A. Large LCD display with background light and could have different background color for
choose
B. Zero point calibration and Multi-point calibration;
C. User can recall 20 Store data, delete specified readings, or delete group readings;
D. Statistics display: Average, minimum, maximum data;
E. Built in both of FE and NFE probe
F. Power off automatically;
G. Low battery and error indication;
H. Signal hand operate, simple key and easy operate
I. 180 degrees flip to read data

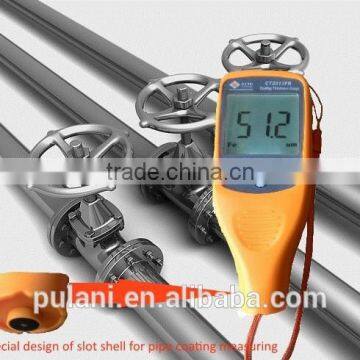

J. V-shaped grooves suitable measurement on the cylindrical parts
K. Special probe tip structure with more better stability
L. Voice Reminder of operate
Technical Specifications
Substrate :Fe steel or iron
Substrate NFe non-magnetic metals: aluminum, copper, brass, zinc,
stainless steel
Measuring Range Fe: 0 - 1500 µm (0 - 60 mils)
NFe: 0 - 1500 µm (0 - 60 mils)
Resolution :0.1um (0-99um);1um (100-1500um)
Accuracy :±(1.8%um±2um)(0-500um);±(2.2%um±2um) (500-1500um)
Repeatability and Reproducibility study :±1um 0-500um;±2um 500-1500um
Minimum Substrate Thickness Fe: 0.2 mm , NFe 0,05 mm
MinimumArea of Measurement : convexity 5mm concave : 30mm
Operating Temperature :-10 - 60 °C
Use temperature : 0-50°C
Humidity :<80%
Power Supply :2 x AABatteries
Dimensions :120mmx52mmx25mm
Weight approx. 72 g without battery, with battary of 100g
Basic Functions:
1. Auto recognize the substrate of Ferrous or Non-Ferrous
2.Auto switch on by place the the probe on a surface
3.With automatic shutdown function
4. Flip display
5. Metric/imperial system selectable
6.Store up to 20 of the latest data, analyzed the MAX. MIN. AVG.
7.Historical data are clearable, restore factory settings
8.Three different calibration, Zero Calibration,Two Point Calibration and Multi-point calibration
9.LCD Backlight
10.Low voltage indicator

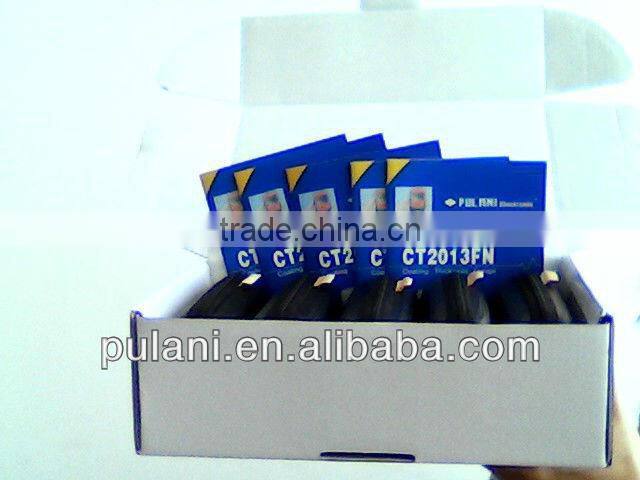

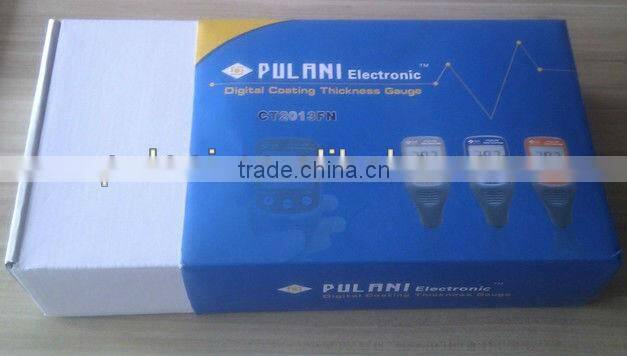

Package: Now there are 2 types of regular package:

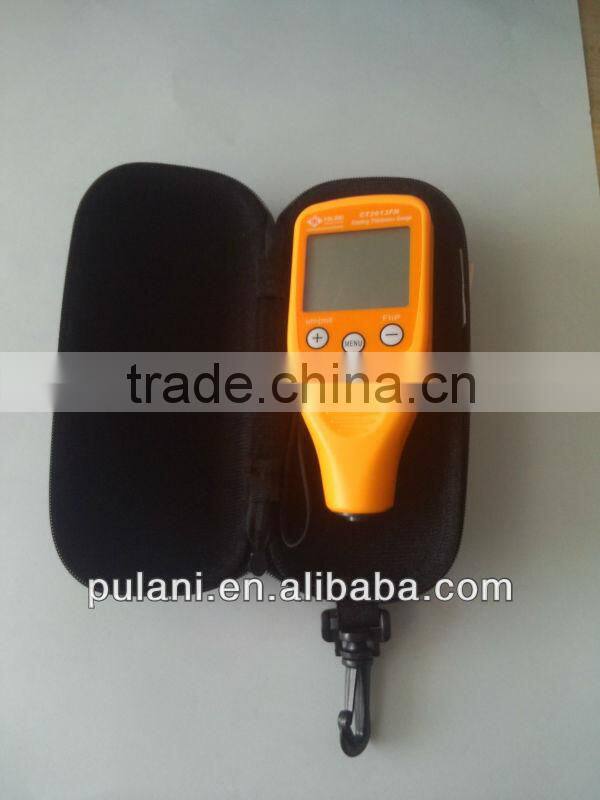

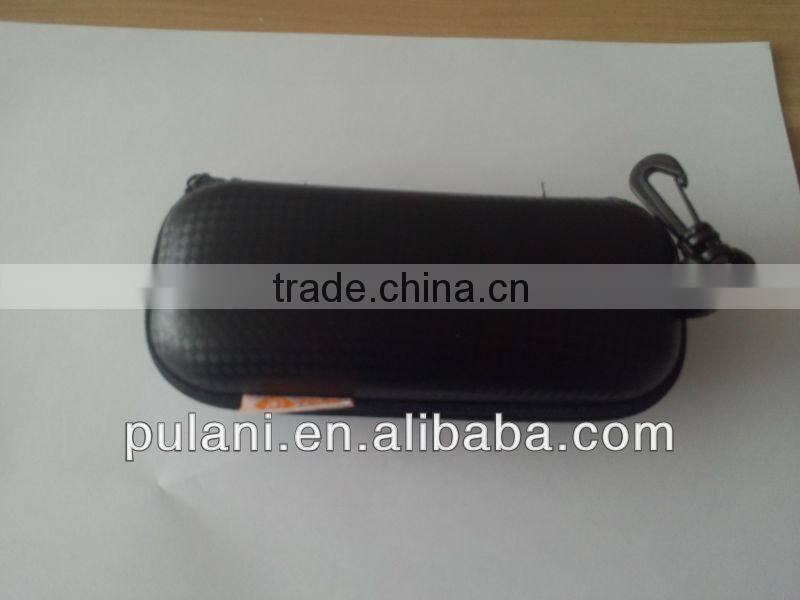

(1) 1 complete set of gauge package: 1 pcs gauge, 1 set calibration, 1 instruction, 1 black glasses box.
(2) 5 complete sets of gauge package: 5 pcs gauge, 5 sets calibration, 5 instructions, 5 black glasses boxes, 1 white carton box whose outside is with the color cover.
