Home > Products > Brushless DC Motor > NEW BLDC Motor BN6060H20-30 220v 3000rpm dc Motor

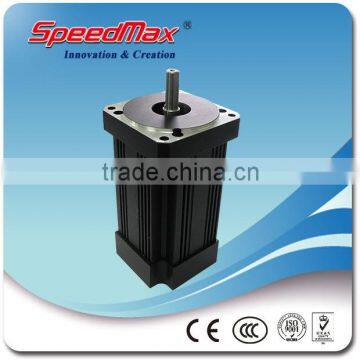

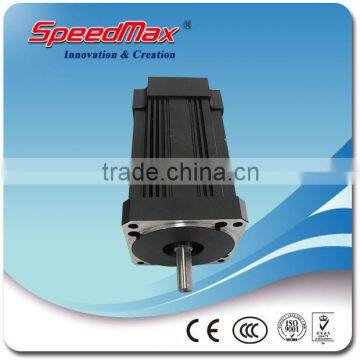

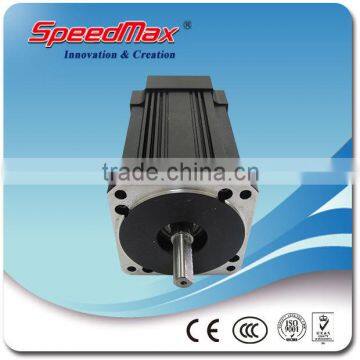

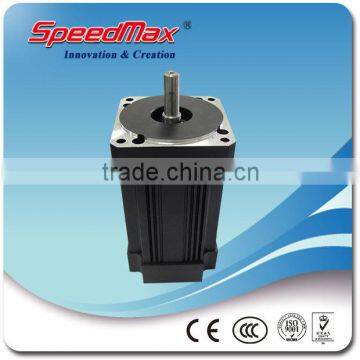

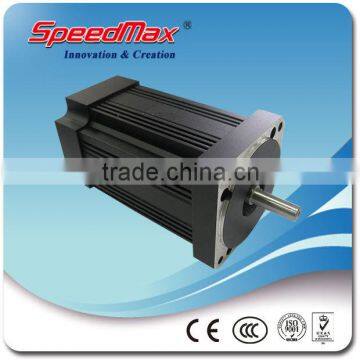

NEW BLDC Motor BN6060H20-30 220v 3000rpm dc Motor
- Zhuhai
You May Like
-
NEW BLDC Motor BN6060K15-30 110v 3000rpm dc Motor
-
NEW BLDC Motor BN6060D10-20 36v 2000rpm dc Motor
-
NEW BLDC Motor BN6060L10-20 24v 2000rpm dc Motor
-
NEW BLDC Motor BN6030H10-40 220v 4000rpm dc Motor
-
NEW BLDC Motor BN6060H07-20 220v 70w 2000rpm dc Motor
-
New Arrival! Portable Intelligent Solar Energy Sea Water Desalination System
Product Details
| Place of Origin | Guangdong, China | Brand Name | Speedmax | |
| Model Number | BN6060H20-30 | Usage | Home Appliance | |
| Certification | CE, ROHS, Other, CE, ROHS, ISO 9001 | Type | Other, Brushless motor | |
| Torque | 0.45N.m | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Drip-proof | |
| Speed(RPM) | 3000RPM | Continuous Current(A) | 1.2A | |
| Output Power | 200W | Voltage(V) | 220V | |
| Efficiency | IE 4 |
Product Description
NEW BLDC motor BN6060H20-30 220v 3000rpm dc motor
Features
1. Better speed versus torque
2. High-performance RbFeB magnet, high efficiency and energy saving
3. Compact Size, Space Save
4. With Honeywell Hall Sensor
Application
Widely used in household appliances, consumer goods, aerospace, automotive, industrial automation equipment, medical equipment, instruments, etc
Can be customized
Customization available upon request
1. Maximum speed and power
2. Shaft size and flange interface
3. Waterproof and dustproof level by IP standard
4. Line length and connector requirements
Product Number Illustration

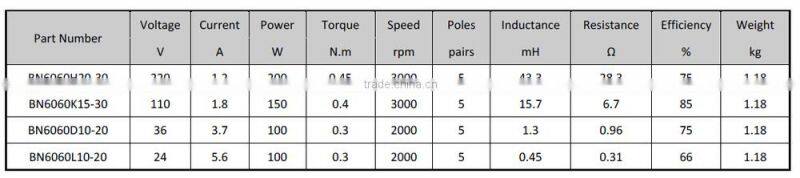

Motor Data
Common Specifications
1. Winding Type: 3 phase with Y Connection.
2. Ingress Protection: IP50
3. Insulation Class: F.
4. Dielectric Strength: 500VAC.
5. Insulation Resistance: 200M Ohm.

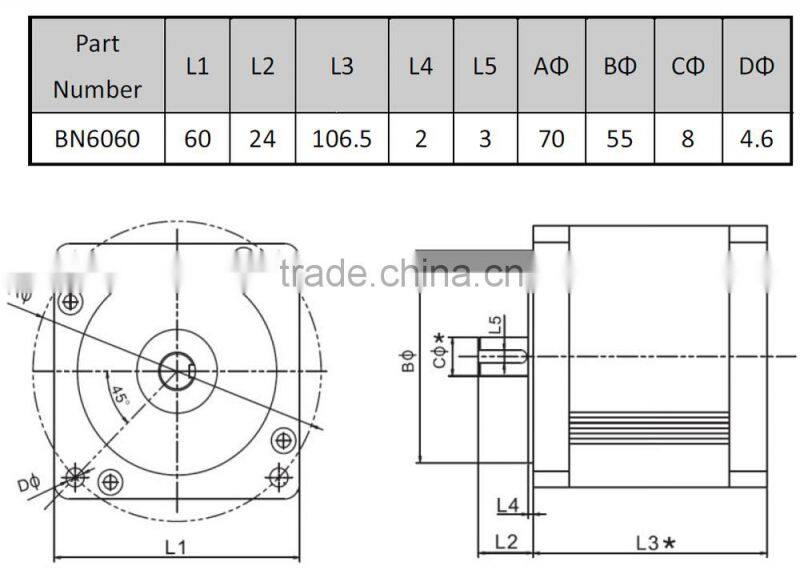

Mechanical Data
Connection
