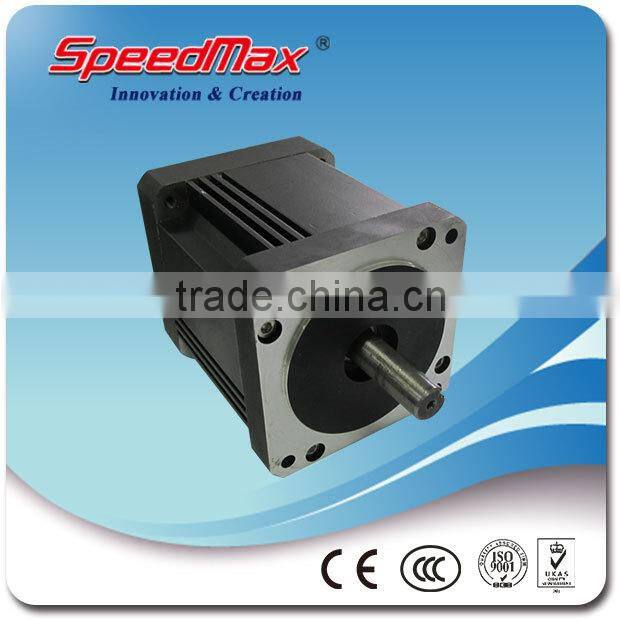

NEW BLDC Motor BN9060F55-15 High Torque High Efficiency BLDC Motor
- Zhuhai
You May Like
-
NEW BLDC Motor BN9060F60-30 High Torque High Efficiency BLDC Motor
-
24V 400W Low Power High Efficiency BLDC Ceiling Fan Motor
-
BN8030L18-30 Brushless DC Motor 24V BLDC
-
NEW BLDC Motor BN6060H20-30 220v 3000rpm dc Motor
-
NEW BLDC Motor BN6060K15-30 110v 3000rpm dc Motor
-
NEW BLDC Motor BN6060D10-20 36v 2000rpm dc Motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Speedmax | |
| Model Number | BN9060F55-15 | Usage | Home Appliance | |
| Certification | CE, ROHS, Other, CE, ROHS, ISO 9001 | Type | Other, Brushless motor | |
| Torque | 3N.m | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Drip-proof | |
| Speed(RPM) | 1500RPM | Continuous Current(A) | 12.8A | |
| Output Power | 550W | Voltage(V) | 48V | |
| Efficiency | IE 4 |
Product Description
NEW BLDC motor BN9060F55-15 high torque high efficiency BLDC motor
Features
1. Better speed versus torque
2. High-performance RbFeB magnet, high efficiency and energy saving
3. Compact Size, Space Save
4. With Honeywell Hall Sensor
Application
Widely used in household appliances, consumer goods, aerospace, automotive, industrial automation equipment, medical equipment, instruments, etc
Can be customized
Customization available upon request
1. Maximum speed and power
2. Shaft size and flange interface
3. Waterproof and dustproof level by IP standard
4. Line length and connector requirements

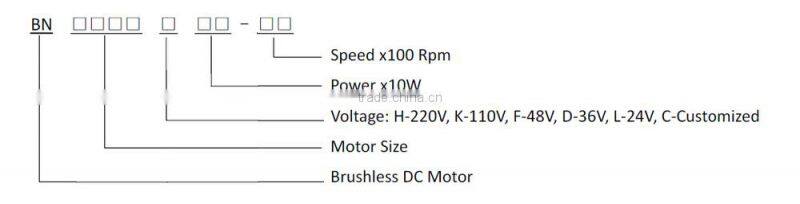

Product Number Illustration

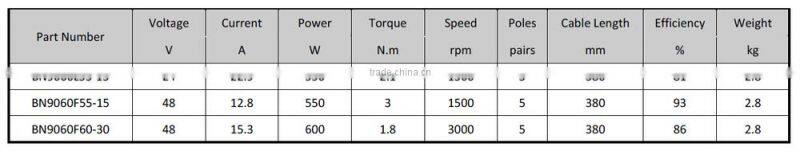

Motor Data
Common Specifications
1. Winding Type: 3 phase with Y Connection.
2. Ingress Protection: IP50
3. Insulation Class: F.
4. Dielectric Strength: 500VAC.
5. Insulation Resistance: 200M Ohm.

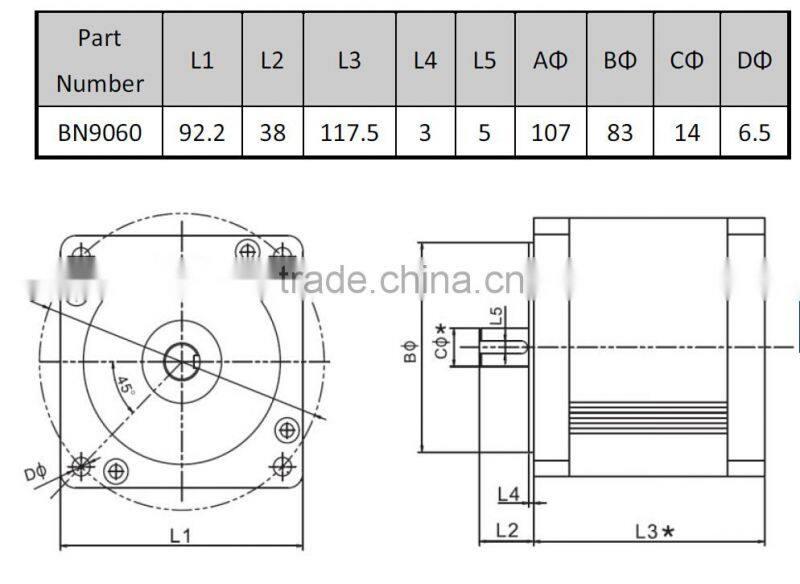

Mechanical Data
Connection
