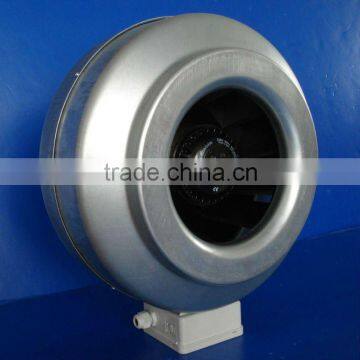

High Pressure Hydroponics Centrifugal Flow Inline Duct Fan
- fob ningbo
- T/T Credit Card
You May Like
-
Radial Ceiling Centrifugal Flow Blower Fans with CE/EMC/FCC Certification
-
Metal Circular Duct Exhaust Ventilating Air Blower Fan
-
Acoustic Box Motor Fan
-
Radial Industrial Blower Fan
-
Steel AC High Powerful & Pressure Hydroponics Exhaust In Line Duct Fans
-
Matel / Steel Electrical AC Centrifugal Inline Duct Blower Fan
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Mounting | Ceiling Fan | Place of Origin | Zhejiang, China | |
| Brand Name | HCSINO (OEM is available) | Model Number | HCGF-S1 | |
| Power | 68W~268W | Voltage | 110V~250V | |
| Air Volume | 290~1900m3/h | Speed | 2500 | |
| Certification | CE |
Product Description
Specifications
High Pressure Centrifugal Fan1.High quality molded impeller
2.Thermally protected AC motor
3.Includes mounting bracket
We are one of the biggest and professinal manufacturer of ventilation products including FAN, SPEED CONTROLLER, FLEXIBLE DUCT, AIR DIFFUSERS, PIPE FITTING, ETC in China. We can provide you with high quality & competitive price & excellent service. Welcome to visit our Group Company at any time.
Product Description :
Housing Material: Steel
Typical sizes available: Φ100; Φ125; Φ150; Φ160; Φ200; Φ250; Φ305; Φ315
Colour available: Black / SiliverIt is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically.The casing is made from steel and the fan sat included fixings for a secure installation.
Specification
Model | Voltage | Frequence | Power | Rotate Speed | Air Volume | Whole Pressure |
(HCGF-S1) | (V) | (HZ) | (W) | (r/min) | (m3/h) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 68 | 2447 | 310 | 340 |
Φ125mm | 120 / 230 | 60 / 50 | 70 | 2340 | 390 | 360 |
Φ150mm | 120 / 230 | 60 / 50 | 97 | 2450 | 610 | 390 |
Φ160mm | 120 / 230 | 60 / 50 | 125 | 2620 | 690 | 420 |
Φ200mm | 120 / 230 | 60 / 50 | 145 | 2548 | 1100 | 590 |
Φ250mm | 120 / 230 | 60 / 50 | 158 | 2440 | 1200 | 560 |
Φ305mm | 120 / 230 | 60 / 50 | 215 | 2410 | 1850 | 670 |
Φ315mm | 120 / 230 | 60 / 50 | 230 | 2373 | 1900 | 690 |
SPEED CONTROLLER FOR CHOOSING
