Energy Saving Automatic Unsaturated Polyester Resin Production Line
- Guangzhou Shenzhen Foshan
 - T/T

You May Like
-


Factory Price and Top Quality Fiber Glass Upr Resin Making Machine
 -


Hot Sale Resin Making Plant for Fiber Glass up Resin
 -


Complete and Automatic Grade Epoxy Resin Making Machine
 -


10 Tons Unsaturated Polyester Resin Production Line
 -


Complete Pilot Production Line for Unsaturated Polyester Resin
 -


Complete Unsaturated Polyester Resin Production Plant Quality Choice

Product Details
| Condition | New | Mixer Type | Paddle | |
| Product Type | Other, ahesive, resin, glue, paint etc. | Application | Liquid with Suspended Solids | |
| Additional Capabilities | Milling | Place of Origin | Guangdong, China | |
| Brand Name | JCT | Model Number | FYF | |
| Max. Loading Capacity | 40000L | Voltage | 380v, 220v | |
| Power(W) | 1.5KW-50KW | Dimension(L*W*H) | 1500*1500*1800-8000*8000*10000 | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
unsaturated polyester resin production line1.stainless steel
2.jacket,coil
3.Electrical,steam,therma oil heating
4.CE
energy saving automatic unsaturated polyester resin production line
1. Introduction:
1) Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
2) Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
3) Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..
4) Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
5) Applicable Field: All the liquid-liquid, liquid-powder reaction industry.

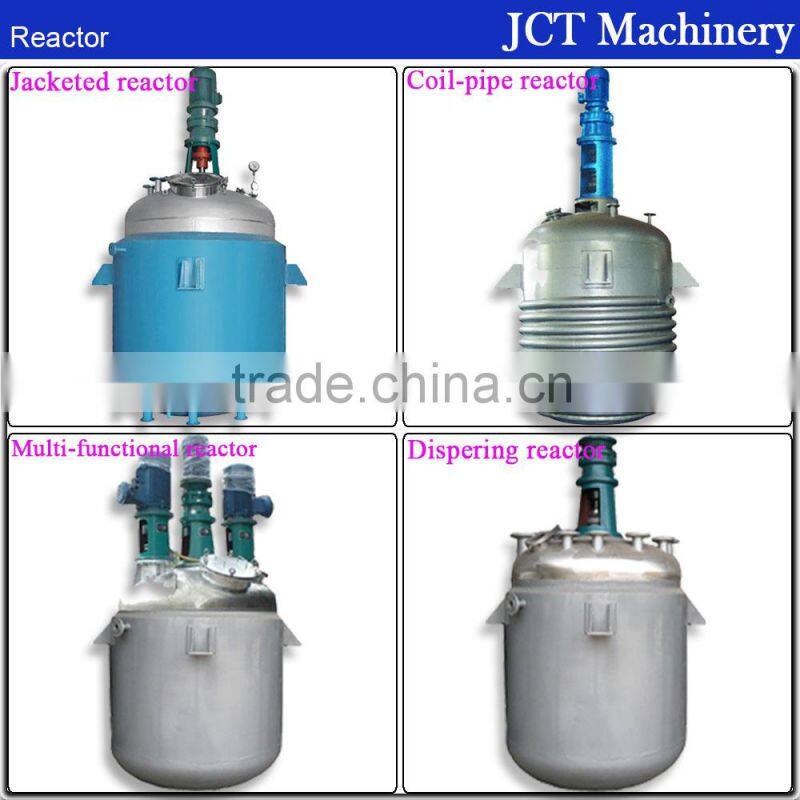

6) The blending forms are divided into anchor type, frame type and oar type etc.

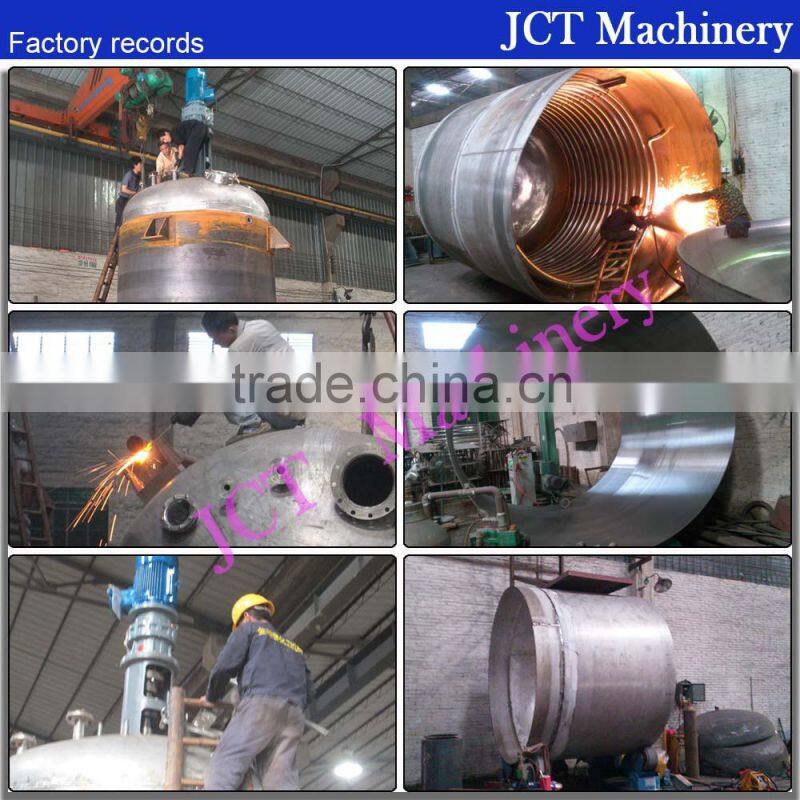

reactor manufacturing

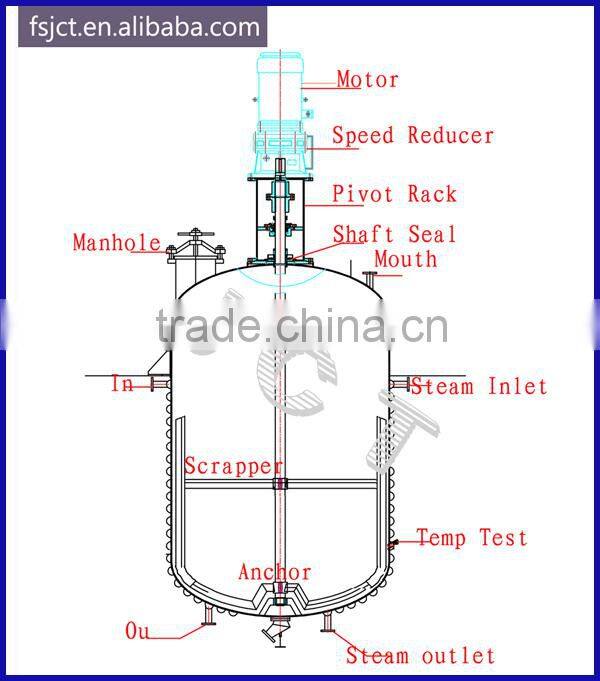

2. the compositions of reactor:
A. motor B. reducer C. pivot rack D. shaft seal E. manhole F. charging port G. flange H. jacket or coil I. cylinder J.paddle K. discharging port etc.
reactor structure

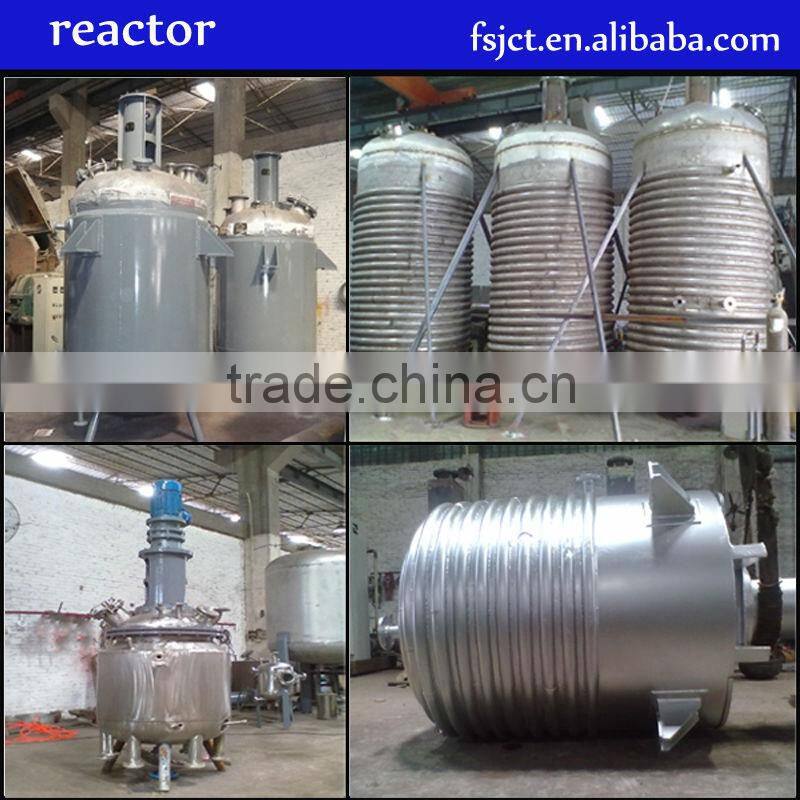

3. Reactor used in the production:
1). unsaturated resins, alkyd resins, acrylic resins, polyurethane resins and other complete sets of production equipment.
2). lotion, white latex, PU glue, adhesive sets of production equipment.
3). waste silica gel pyrolysis, recycling equipment.
4). paint sets of production equipment.
5). complete sets of all kinds of fine chemical production equipment.
4. Reactor parameters:
Specifications  | Effective volume(L)  | Heating  | Heating(colding)structure  | Shaftseals  | Remarks  |
FYF-50L  | 50  |


 HTF
  |


 Jacket

  |


 Single mechanical seal

  |
 1. the motor power size, stirring speed level determined according to    actual requirements.



  |
FYF-100L  | 100  | ||||
FYF-200L  | 200  | ||||
FYF-300L  | 300  | ||||
FYF-500L  | 500  | ||||
FYF-1000L  | 1000  | ||||
FYF-1500L  | 1500  | ||||
FYF-2000L  | 2000  | ||||
FYF-2500L  | 2500  | ||||
FYF-3000L  | 3000  | ||||
FYF-4000L  | 4000  | ||||
FYF-5000L  | 5000  | ||||
FYF-6000L  | 6000  | ||||
FYF-8000L  | 8000  | ||||
FYF-10000L  | 10000  | ||||
FYF-12000L  | 12000  | ||||
FYF-16000L  | 16000  | ||||
FYF-20000L  | 20000  | ||||
FYF-25000L  | 25000  | ||||
FYF-30000L  | 300000  |

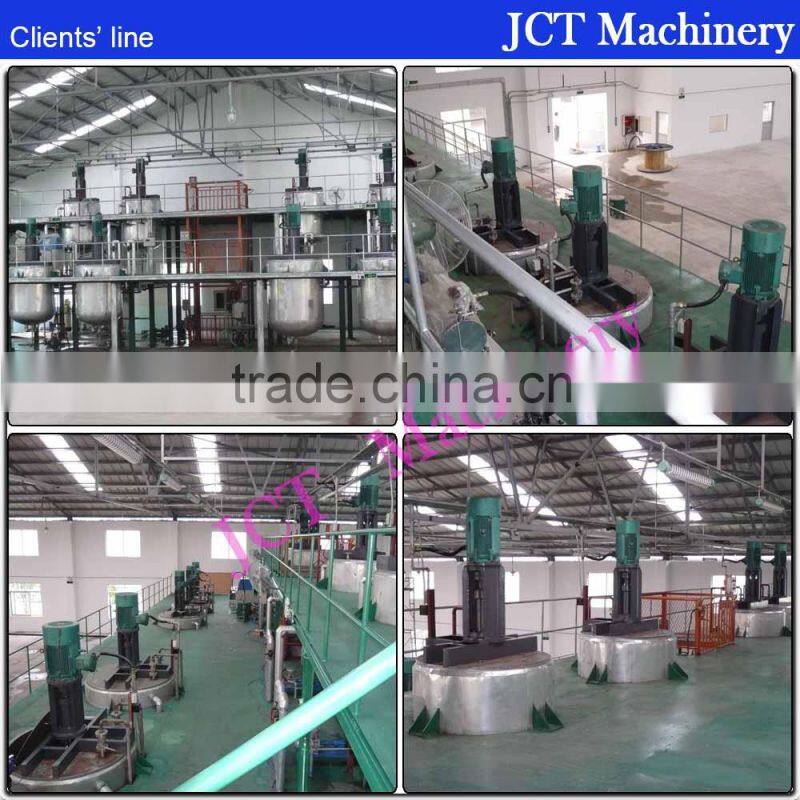

5. Reactors in the application:
6. About us:
1). The company build in 2006, now there are about 50 people work for it.
2). Our credo is: JCT —— your truthful partner in China.
We are strive to become the leader in this industry and produce the world-class mixing equipment.
3). Our products including reactor, kneader, planetary mixer, power mixer etc, and can be used for resins, adhesives, paint, sealants and powder mixing etc.
4). Our products have exported to Ethiopia, Saudi Arabia, Japan, India, Russia, Sudan, Italy etc.
some of our clients

7. contact information:
energy saving automatic unsaturated polyester resin production line
Contact Us
                - Foshan JCT Machinery Co., Ltd.
 - Contact namelee Chat Now
 - Phone86-757-86707237
 - AddressWufuwei Industrial Zone, Pingzhou, Nanhai District, Foshan City, Foshan, Guangdong
