10tons Waste Rubber Pyrolysis Machine

One set of the pyrolysis plant can be held in one 40'' HQ and one 40ft FR

10tons waste rubber pyrolysis machine

We are a professional manufacturer specialized in producing waste tyre/plastic pyrolysis plant and distillation plant for more than 8 years with ISO14001:2004 , ISO9001:2008 and CE certificate.

1. Model of Pyrolysis plant:

2. Working process Of pyrolysis plant:

First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.

3. End of Product from Pyrolysis plant

4. Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the pyrolysis plant,and you will be in charge of the food, accommodation and round air tickets.

5. Land requirement:  300sq meters(10m*30m)

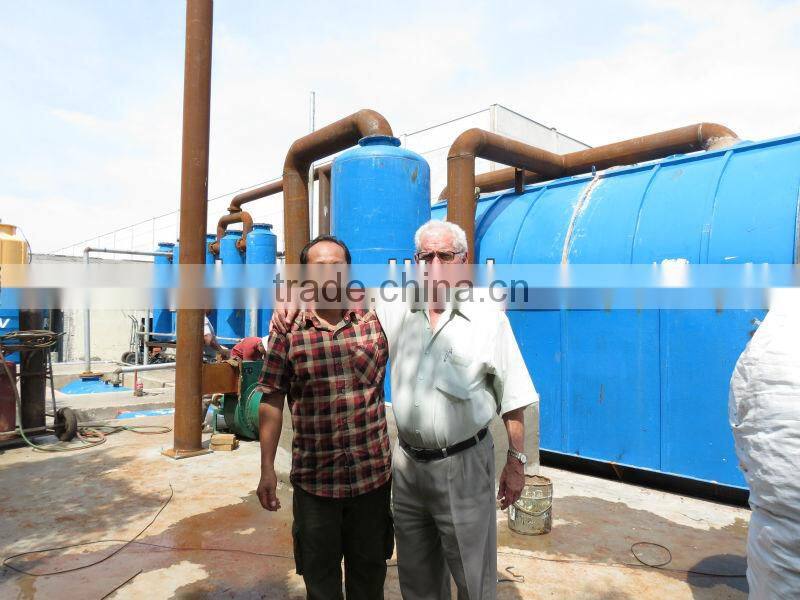

6. Exporting Experience:
