Home > Products > New Products > LC -C type drop hammer impact test machine

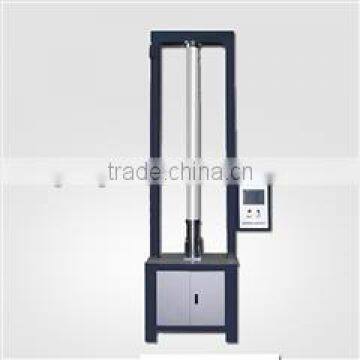

LC -C type drop hammer impact test machine
- DALIAN/SHENYANG
- T/T
You May Like
-
FM-150-6A type Universal plumbing valve testing equipment
-
FM-100-6G type Universal plumbing valve testing equipment
-
SG-ZY-D / E type prototype cutting machine
-
RW-6A type Tester of vicat softening temperature
-
VRZ-A type Tester of vicat softening temperature
-
VRZ-3A type Tester of vicat softening temperature
Product Details
| Place of Origin | Liaoning, China | Brand Name | ZIWEI | |
| Model Number | LC -C | Power | Electronic | |
| Usage | Impact Testing Machine |
Product Description
LC -C type drop hammer impact test machine
[Testing items]
Suitablefor building drainage in pvc-u pipes, water supply in pvc-u pipes, buriedsewage with pvc-u pipe, low pressure irrigation with thin-wall pvc-u pipes,drainage with core layer foamed pvc-u pipe impact resistance performancetesting, etc.This equipment can also be extended for PVC profiles, plastic,glass, ceramics and other nonmetallic material or sample products of drophammer impact.
[Applicablestandards]
JB/T9389-2008Specification for falling weight impact testing machines used for non-metallicmaterials
GB/T14153-2002 General testmethod for impact resistance of rigid plastics by means of falling weight
GB/T10002.1-2006 Unplasticizedpoly(vinyl chloride)(PVC-U) pipes for water supply
GB/T20221-2006Unplasticized poly(vinyl chloride)(PVC-U)pipes for non-pressure buried drainageand sewerage systems
GB/T13664-2006Unplasticized poly(vinyl chloride)(PVC-U)pipes for low-pressure conveyance inirrigation
GB/T16800-2008Unplasticized polyvinyl chloride (PVC-U) pipes with a cellular core fordrainage
GB/T14152-2001Thermoplasticspipes--Determination of resistance to external blows--Round-the-clock method
GB/T8814-2004Unplasticizedpolyvinyl chloride(PVC-U)profiles for the doors and windows
[Technicalparameters]
Model:LC - C1 LC - C2 LC - C3
Scope of the test specimen: 16 - phi phi phi 200 mm pipe 16 - pipe 16 - phi phiphi 400 mm 630 mm pipe
Largest impact range: 0.4 ~ 2 m error + / - 5 mm 0.5 ~ 2 m + / - 5 mm
Impact on quality of range: 0.25 kg ~ 4 kg (0.25 kg - 0.25 kg
Hammer specifications: R5, R10, R15, R12.5, R20, R25, R30, d25, d90
Overall dimensions length x width x height (mm) : 1110×625×3100 1300×625×3600 1530×625×3850
Power supply and power: 220 vac / 600 w / 220 vac / 1000 w
Weight: 150 kg, 200 kg, 250 kg
Optional components: door window of model steel profile and profile impacthammer impact hammer quality 8 kg ~ 16 kg
The capture rate: 100%
Hammer body lifting method: adopt touch screen control stepping motor, make thehammer body lift, can be arbitrary set of hammer body height
