HLM High Speed Tile Forming Machine

Our HLM series high speed steel tile forming machine is designed based on the HL series forming machine.

This forming equipment a high speed capacity with increased efficiency. Additionally, it adopts an industrial computer control system that is highly automatic.

This product has earned 1 patent of invention and 2 patents of utility model. Our produces steel tile forming machines of different specifications, models and configurations.

Main Components

a decoiler, sheet guiding equipment, laminating system, roll forming system, cutting equipment, automatic stacker, hydraulic system, and automatic control system.

Specification

1). suitable raw material:             0.5mm to 0.6mm colored steel sheet Q235

2). Main motor power:              5.5kw

3). Hydraulic power:            7.5kw

4). Hydraulic decoiler:             5tons

5). Working speed:              4-5m/min

6). Control system:             Mitsubishi PLC and Danfoss inverter

7). Cutting dire Material:      Cr12 mold steel, with quench treatment

8). Installation dimendions:    20*3.5*1.4m

9). Total weight:                       About 12.000 kg

10) Shipment after receiving L/C or full invoice amount by T/T

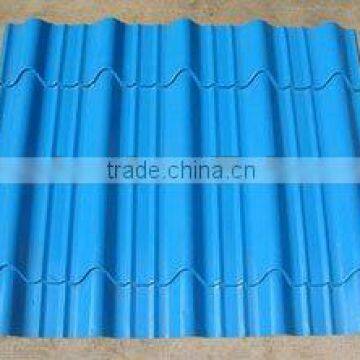

We can design them as per customers' requirements in terms of panel shape, specifications and configuration.
