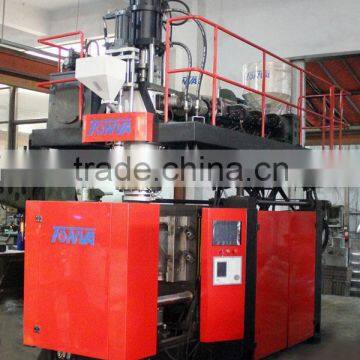

50L jerrycan making machine
- NINGBO
- T/T
You May Like
-
220L plastic drum extrusion blow moulding machine manufacturer
-
220L HDPE drums barrels extrusion blow moulding machine
-
1000l triple layer blow moulding machine
-
1000L three layers water tank co- extrusion blow moulding mahine
-
Needle Valve Plastic Bottle Mold Making Preform
-
Hot Runner Double Cavity 20L Drinking Water Bottle Plastic Preform Mold Manufacturer
Product Details
| Condition | New | Application | Other, jerrycan | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Zhejiang, China | |
| Brand Name | Tonva blow molding machine | Model Number | TVHS-50L | |
| Voltage | 380VAC,50HZ | Power(W) | 70kw | |
| Dimension(L*W*H) | 5*3.1*3.9m | Weight | 9000kg | |
| Certification | CE;ISO9001;SGS;BV | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
50L jerrycan making machine
Model: TVHS-50L
Basic specification:
l Single Station / Single accumulator Die- head
l Single layer / View stripe(optional)
l 90mm screw / 30kw motor
l HDPE / LDPE /PP/PVC etc material
l product range:20L-50L
Working condition:
l Power supply: 380VAC/50Hz
(depending on client's country)
l Water Cooling: 20℃
(10HP Water chiller or water tower)
l Air source: 0.6Mpa, 0.8m3/min
(1.0 m3/min air compressor)
This kind of machine is equipped with PLC control system, operating manual in English, all movements by fully hydraulic system operated.
Screw: specially designed based on material’s trait, high quality nitriding steel 38CrMoAl,with nitriding surface HV≥800,brittleness≤2.
Barrel: high quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
Drive mode: inverter and hard gear surface decelerator.
Temperature controlling: automatic temperature controled by PLC.
Cooling Mode: adopting water cooler for the processing zone, fan cooler for the rest zones.
Die-head system: Adopt nowadays most advanced accumulator die head, mirror runner, change color and faded quickly. Accumulator tank, ensure reliable and durable, no eccentric.
Clamping system: Double tie rod hydraulic clamping,the structure is compact,effective mold size increase 25%, four clamping pull rod center, guide rails positioning accurate.
PLC and HMI: parameter setting, modification could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently.
Electric system: adopt world famous brand, such as SCHNEIDER, SIEMENS etc.
servo motor view stripe
Muiti-layer
Servo motor: with servo motor can save 30-40% power
View stripe: Popular for oil jerry cans, to help to check the volume of liquid in the bottle.
Multi-layer:double/three layers--new material for outer layer, recycle material for inner layer, saving cost.
Category | Item | Unit | Parameter |
Basic Specification | Raw material | ------- | PE/PP |
Max container capacity | L | 50 | |
Number of Die Head | set | 1 | |
Weight | T | 9 | |
Dimension(L×W×H) | m | 5×3.1×3.9 | |
Extrusion Unit | Diameter of screw | mm | 90 |
L/D of screw | ------ | 25:1 | |
Plasticizing capacity | kg | 120 | |
Extrusion Driving power | Kw | 30 | |
Extruder Heating power | Kw | 12.5 | |
Fan Power of screw | Kw | 0.72 | |
Die Head | Heating zones | piece | 4 |
Power of die heating | kw | 8 | |
Accumulator capacity | kg | 6 | |
Clamping Force | Mould thickness | mm | 360-600 |
Platen opening stroke | mm | 600 | |
Max mould size | mm | 900×1200 | |
Clamping force | KN | 400 | |
Power | Oil pump power | Kw | 11 |
Total Power | Kw | 70 | |
Average consumption | Kw | 35 | |
Pressure of air source | Mpa | 0.7 | |
Air consumption | m3/min | 0.8 |
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Offer trainning to clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7. Custimized design as requirements.
