20L to 50L Plastic Drum Accumulator Blow Moulding Machine With CE

20L to 50L plastic  drum accumulator blow moulding machine with CE

Model:TVA-30L

• Accumulator die-head

• 80mm screw/22kw motor
• Pure hydraulic clamping system
• 100 points MOOG Parison Controller
• YUKEN clamping system

• SCHNEIDER electric parts

• Working Condition:

              Power Supply: 380V/50HZ, 3-Phase

                     (According to Clients' country)

              Water Source: 15HP water chiller

              Air Source: 0.6 Mpa,0.6 m³/min

                      (1 m³/min air compressor)

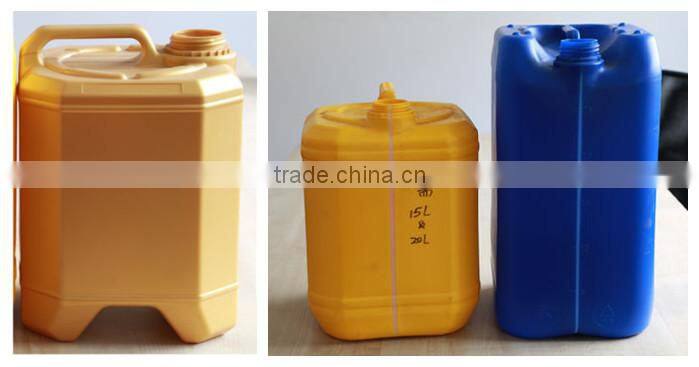

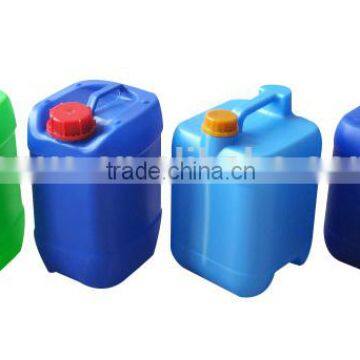

 This series is applicable for PP,PE,raw material, and volume between 10L-20L, it is widely used in plastic barrel, tool boxes, hollow desk board, chairs, auto parts and other large and medium-sized plastic hollow products.

Adopts two pull-rod type  closing-mold device by rack and pinion system. The large setting platen is suitable for various sizes of moulds.

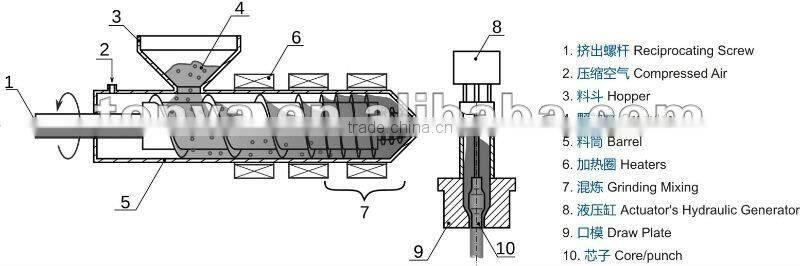

1.Plasticizing System:

Screw& Barrel:  High quality nitriding steel 38CrMoAlA for long working life.large L/D ratio design,ensure material equally processed, extruder stably.

Die –head:First-in First-out(FIFO),center-feeder/customized design.

2. Drive mode:

inverter + hard gear surface decelerator,lower consumption,low noise,balanced and stable screw rotation.

3.Temperature controller:

PID&PWM heating model,accurate control

4.Clamping system:

Fixed clamping system, three platen,SMC cylinder ,wider space for the mould, install and dismantle the mould easily, linear roll guide rail.

5.PLC and HMI:

Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;

6.Electric Parts:

Schneider Brand,high reliability,long working life.

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.
