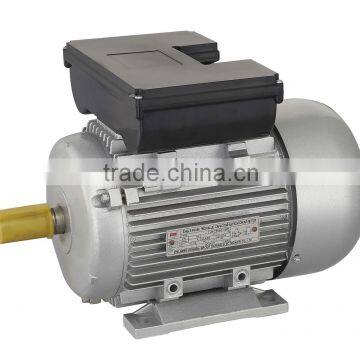

yl90l-2 single phase foot mounted electric motor
- 10000 Set / Sets per Month
- Ningbo/Shanghai
- T/T
You May Like
-
YC series single phase electric motors 1hp ac motor electric fan motor
-
Single-phase and CCC,CE,ROHS Certification AC Electric Motor
-
CCC,CE Certification and 115V/230V AC Voltage ac motor YY SERIES
-
5 hp electric motor single phase 50Hz 220V YY
-
single-phase small ac electric motors with cable and switch YLX100L2-4
-
single-phase two-value capacitor AC fan asynchrinous motor with high quality(YL8022)YL series
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NULANG | |
| Model Number | YL |
Product Description
Capacitor motor
Specifications:
1) Frame size: 132
2) Rated power: 5kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz,50Hz/Hz
5) Protection class: IP44
6) Insulation class: B, F
7) Materials: cast iron, aluminum (FRAME 63-160)
8) EFF: EFF2, EFF1
9) Poles: 2, 4, 6
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C< θ <40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East Asia, South America
Inner packing:Foam box
Outer packing: Wooden box
Conveyance:
Qty/20' FCL: 295pcs
Certificate:
