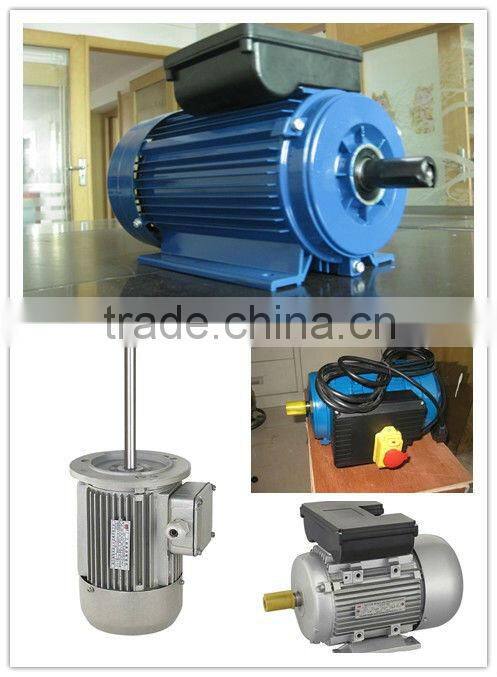

Single Phase ac Electric Motor Fan Motor NSK Bearing

 YC Horsepower series electric machinery has simple structure and reliable use.

So it is commonly used for industrial production and

daily electric appliance and has a big proportion in micro-electric-machinery.

Horsepower series electric machinery is widely used for small model

machinery such as small model air-compressed machines

window air-conditionings,shoe machines and so on.

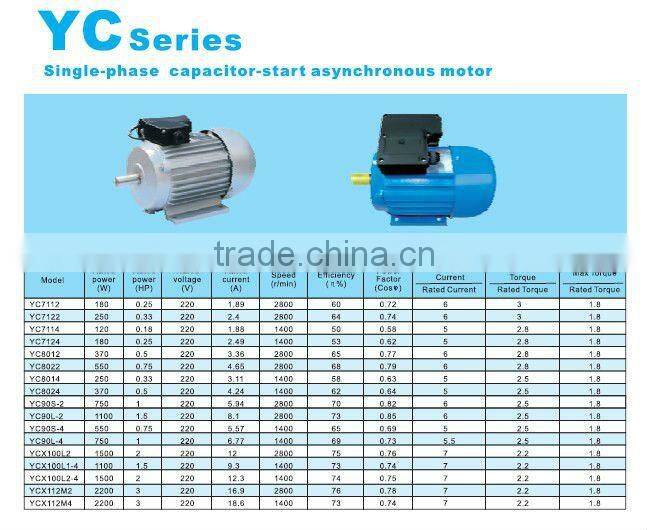

Product Description:

 1) Frame size: 71-132
2) Rated power: 0.37-7.5kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44, IP54, IP55
6) Insulation class: E, B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2
10) Speed: 2,800rpm
11) Cooling method: IC411 (total-enclosed fan-cooled type)
12) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
13) Operating mode: S1
14) Connection: Y type for 3kW and downwards, "D" type for 4kW and upwards
15) Ambient temperature: -15- 40
16) Altitude should be lower than 1,000m above the sea level
17) Relative humidity: not higher than 90%
18) Special motors can be designed according to customers' requirements
19) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East
Asia, South America

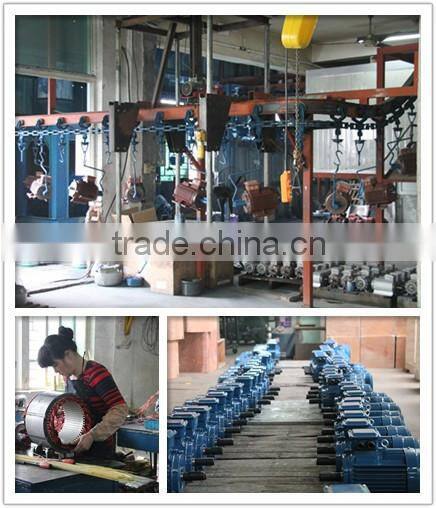

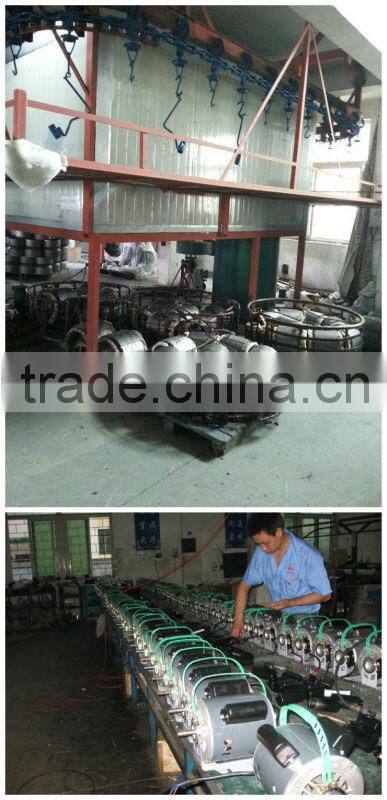

Factory:
