Home > Products > Plastic machine > plastic PPR pipe extrusion line 2013 hot sales
plastic PPR pipe extrusion line 2013 hot sales
- 10 Set / Sets per Month
- Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | Other, ppr | Screw Design | Single-screw | |
| Automatic Grade | Automatical | Place of Origin | Shanghai, China | |
| Brand Name | OKMA | Model Number | PPR-63 | |
| Voltage | 3 phase | Power(W) | 37kw | |
| Dimension(L*W*H) | 22m*1.2m*1.8m | Weight | 8000kg | |
| Certification | CE | After-sales Service Provided | Overseas service center available |
Product Description
PPR pipe producing line, equipped with different extruding dies and necessary auxiliary machines, can make various PE pipes.
Features of this line:
1. high efficiency single screw extruder: high rotating speed, good compounding effect and stable extrusion ensuring big capacity.
2. extruding die: adopting latest designed die head with spiral distributing flow channel, built-in temperature controlling device which make the extrusion more evenly.
3. vacuum calibrating tank: advanced water loop vacuum calibration, two vacuum chambers ensuring perfect roundness of the pipe, multi-section 6 meter water spraying tank, make sure cooling the pipe thoroughly, the main body of the tank made of stainless steel.
4. haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.
5. cutting unit: dust-free cutting, with PLC controlling and meter counter.
6. stacking unit: providing pipe winder or pipe stacker.
7. controlling system: supply manual controlling cabinet and SIEMENS PLC touch screen controlling.

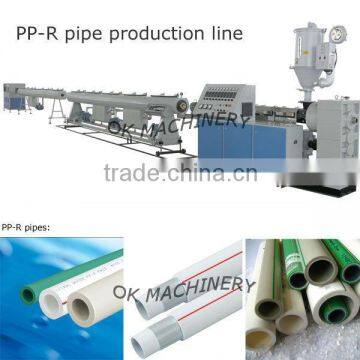

PPR pipe extrusion line
| Diameter of PPR pipe (mm) | S5 (PN1.25 Mpa) | S4 (PN1.6 Mpa) |
| 20 | 1.9 | 2.3 |
| 25 | 2.3 | 2.8 |
| 32 | 2.9 | 3.6 |
| 40 | 3.7 | 4.5 |
| 50 | 4.6 | 5.6 |
| 63 | 5.8 | 7.1 |
| 75 | 6.8 | 8.4 |
| 90 | 8.2 | 10.1 |
| 110 | 10.0 | 12.3 |
Features of ppr pipe machine:
1. PPR pipe extrusion line can be used to produce three-layer PP-R pipe, in the middle, it is fibre glass or Aluminum
2. PPR pipe extrusion line can be used to produce PE-RT pipes
3. Can be controlled automatically by Siemens PLC controlling system
Main specification of ppr pipe machine:
Model | Pipe diameter | Extruder | Max. capacity (Kg/h) | Working length |
PP-R-63 | Φ20-Φ63 | 65/33 | 120-150 | 35m |
PP-R-110 | Φ63-Φ110 | 75/33 | 180-250 | 42m |
PP-R-160 | Φ75-Φ160 | 75/33 | 180-250 | 45m |
