Home > Products > Plastic machine > pvc pipe extrusion line with good price
pvc pipe extrusion line with good price
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | PVC | Application | Drain Pipe | |
| Production Capacity | UPVC Pipe Extrusion Line | Place of Origin | Jiangsu, China | |
| Brand Name | OK | Model Number | OK-pvc pipe extrusion line | |
| Voltage | 380 | Power(W) | 75KW | |
| Dimension(L*W*H) | 20m*2.5m*1.8m | Weight | 15tons | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description

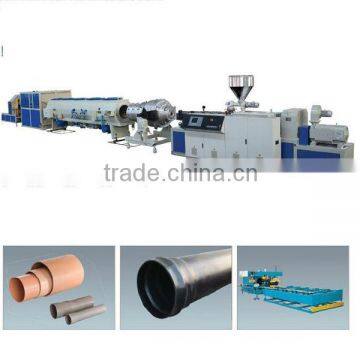

pvc pipe extrusion line
1. Mixture material: PVC+CaCO3+CPE+Wax...
2. Screw Type: twin screw
3.Capacity: 250kg/h
4.Speed: 1-8m/min
5. Inverte Control
Decription:
This line is a fully automatical production line, with main extruder of SJSZ51/105 series or SJSZ65/132 series or SJSZ80/156 series or SJSZ92/188 series for different diameter's pipe. pvc pipe machine with price The products of this line---PVC pipe is used for drainage pipe and water supply pipe, the out diameter range for pipe is 12 - 630mm. raw material is pvc powder extruder type: twin screw extruder machine output: 120-400kg/h; In the production line, can attach PVC mixer, Crusher, Pulverizer.
Technical parameter:
Model | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
Screw dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
Max speed(rpm) | 40 | 38 | 38 | 37 | 36 |
Main motor(KW) | 18.5 | 22 | 37 | 55 | 90 |
Output(KG/H) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
Centre height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
Net weight(KG) | 3000 | 3500 | 4000 | 5500 | 8000 |
L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
PVC Pipes Picture:
