Automatic Shrink Packing Machine
- shanghai port for shrink packing machine
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Food, Other, Beverage, Food, Machinery & Hardware, shrink packing machine | |
| Packaging Type | Bags, Barrel, Bottles, Case, Other, Bags, Barrel, Bottles, Case, shrink packing machine | Packaging Material | Glass, Plastic, Wood, Other, Glass, Plastic, Wood, shrink packing machine | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 2.2KW, 3.7KW , 4.5KW , 5.5KW , 7.5KW,Automatic shrink packing machine | |
| Place of Origin | Shanghai, China | Brand Name | OK Machinery | |
| Model Number | BCGF | Dimension(L*W*H) | 2200X2100X2200MM | |
| Weight | 1900KG , 2500KG , 3500KG | Certification | CE, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic shrink packing machine
wrappage max size:L600×W400×H350mm
shrinkage film size:PE,PVC,POF
shrinkage thermo thickness:0.03-0.15mm
thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.
max output per minute:8-12bag
facility power:18Kw
actual power:15Kw/hr
pressure requirement:380/220V
facility weight:1.2T
fan machine:1.1Kw 2set 380V, 65W 4set 380V
2),facility basic configuration:
Thinget:5.7 inch touch screen, PLC controlling system
Taiwan AIRTAC pneumatic component 1set
Taiwan Telta frequency converter 3 set
stainless steel wing heating tube 12 piece
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.
South-Korea Autonics photoelectric switch, proximity.
thermo sealing knife ulminium-mould heating board, even temperature, long life, our company special production.
Whole machine plastic-sprayed, machine rack adopt to high-quality carbon steel, main part adopt to stainless steel.
bottle convey machine length:2600mm
Carton and wrappage film pack separately.
3),product description:
frequency converter speed adjust,two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length.
Touch screen, PLC system greatly increase facility movement reliability.
double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
super big wind-volume cooling system, ensure quickly get into shape .

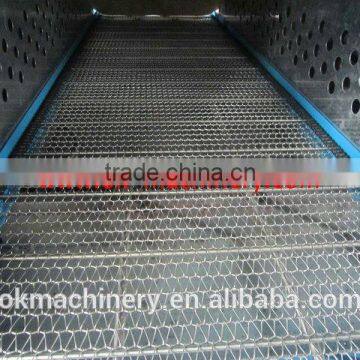

anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
frequency limitless speed adjust convey belt frame.
convey belt height can make according client requirement, adjust range:±50mm
bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
wing stainless steel heating system, endurance.
meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Automatic shrink packing machine photos:
Shanghai OK machinery Co., Ltd. was established in 2000, It's a professional manufacturer of liquid food and beverage equipment.
Auto thermo PE film shrink wrapping machine/bottle packing machine factory
Pre-sale service
•Provide relevant advices during project scheduling carrying-out
•Provide initial proposal, process flow diagram, technical documents and equipment layout plan.
•Provide engineering cases for reference.
•Provide our documents about logistics management and quality control.
Sale tracking service
We will assign our experienced project manager to do the job as below:
• Sign contract
• Conform drawing
• Equipment fabricating
• Initial assembly commissioning
• Final assembly commissioning
• Ex factory inspection
• Delivery
• Final commissioning
• Inspection and acceptance
After-sale service
•Provide technical support and production line upgrade;
•Feedback within 2h after receive fault notification or service requirement, assign our engineers onsite within 24h,within 48h at the latest;
•Warranty period:1 year after equipment’s acceptance.Service in the warranty time includes: guarantee for repair(whole equipment),guarantee for replace(except easily damaged partsand man-made damage),guarantee for return(optional components)
Q1:What kinds of product you supply?
A1:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.
Q2:How can we get your products?
A2:Find our products through Ok Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, etc
Q3:How to tell you our enquiry?
A3:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.
Q4: Where is your factory?
A4: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.
Q5: Can you send engineer to our local place for installation?
A5: Yes, If you need, we will arrange engineer for you, and we can provide turn-key project.
