2015 Best Seller Label Cutting Machine

2. type :automatic line

3. CE

Parameters:

Specifications instruction:

        easy operation to adjust label cutting knife.

        vacuum drum made of high rigid material  to avoid friction and static

        rapid changeovers: modular design and quick release change parts have changeovers fast and easy in ten minutes

        using handle to adjust the position of cutting knife is possible and exactly

        vacuum manifold at the lower part of drum and cutter, made of  heat & wear resistant material

        automatic label length controller to adjust position of I-MARK

Machine description

        roll-fed type

        label in-fed from label station is conveyed to label in-feed roller through label guide roller

        sensors will check I-MARK of label automatically when label reaches label in-feed roller

        as soon as the position of I-MARK is confirmed, Encoder will adjust the operation speed of label in-feed roller and then appoint the label cutting position

        label which has been cut is conveyed to vacuum drum

        after checking label attached on vacuum drum by sensor, label is conveyed to glue roller and then inject hot melt on label

        to adjust containers by in-feed star wheel and do labeling in roller zone for the first time and then labeling operation will be done perfectly by side belt.

Safety

        control : PLC, inverter

        safety attachments

   Overload running safety equipment attached on driving zone

 Stopper for abnormity operation of in-feed star wheel

 No bottle fed (sensor check)

 Overload for bottle fed (sensor check)

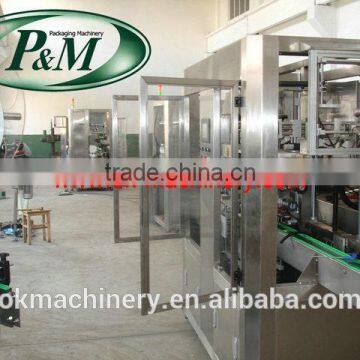

 Part of machine photo 2015 Best seller label cutting machine
