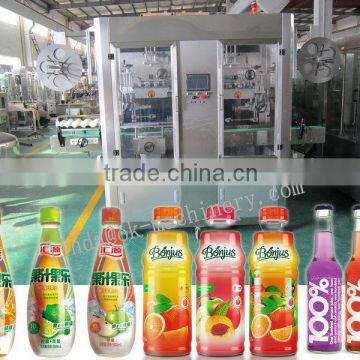

PVC label sleeve shrink machinery

  PVC  label sleeve shrink machinery


automatic sleeve labeling machinery for PET bottles

High stability of the mechanical structure.Whole framework of the overall use of stainless steel,soid and stainless steel.

A protective cover and man-machine interface operating system,the whole machine operates more human-based,more simple control and use.

The machine can be working with the whole production line and fully operated with the whole line.

Uniqe knife plate design,within the scope of our specifications,can avoid changing it.

Forced sleeve-label,very economical.

Overall ratation system,can be linked to adjustment,suitable for various label rolls' specification.

Inner diameter of the label roll:5''-10'' ,can be adjusted differently.

labeling machine-----Detailed Description:

All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.
Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

Technology parameter

Technology parameter

we could supply the production of auto shrink labeling machine:160b/mim-600b/min.we also supply the whole line of tea,water,juice,carbonated beverage,canned foods and etc.. if you have interests,pls contact me.

parts

 parts

 double head labeling machine

our factory photos

Customized accurate pure liquid filling machine

Main Technology

Shanghai OK machinery Co., Ltd. was established in 2001, It's a professional manufacturer of liquid food and beverage equipment.

They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.

OK Filling products List :

PET bottle/glass bottle  filling machine,

Glass bottle beer filling machine,

Water filling machine,

 pet bottle juice machine,

bottle wine filling machine

Carbonated water filling machine,

Capping machine,

cola soda filling machine

Bottle washing machine,

Water treatment,

Oil filling machine/piston filler,

Other bottle filling machine,

Labeling machine,

wrap packing machine,

bottle unscrambler,and some drinks production line auxiliary.

Any further info for 3-IN-1 Bottle Filling Machine, please contact us.
