Home > Products > Galvanized Wire and Cable > Welding Rod J421 /E7018

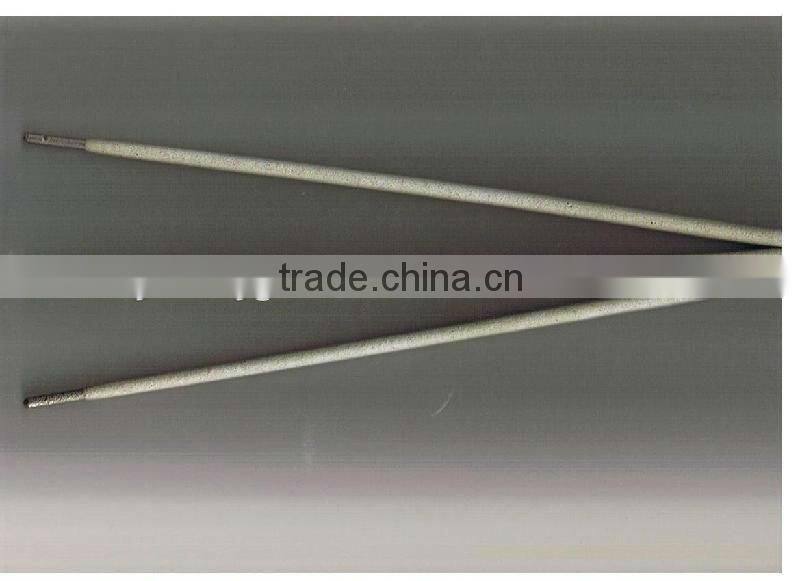

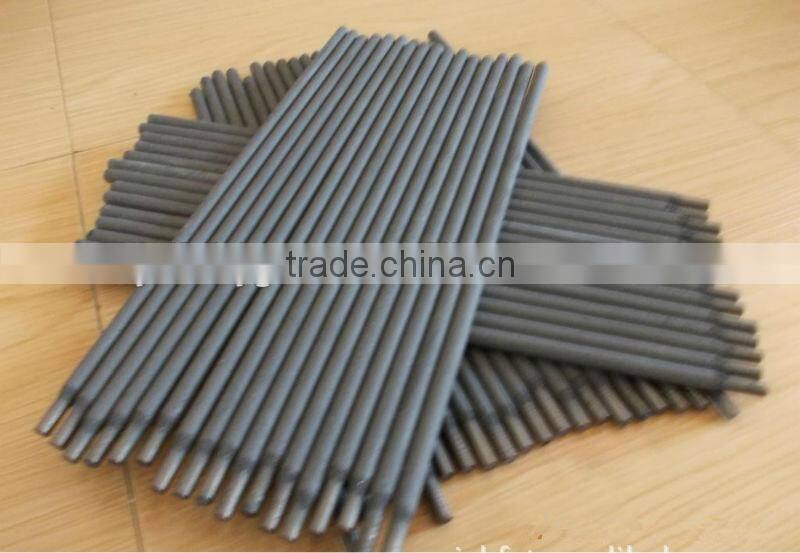

Welding Rod J421 /E7018
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | Big Bridge | |
| Model Number | J421 | Material | Steel Alloy | |
| Length | 300-500mm | Operating Current | 40-240 | |
| Welding Current | 40-70,50-80,80-120,150-190,180-240 | Operating Temperature | 2700 | |
| Diameter | 2.0mm,2.5mm,3.2mm,4.0mm,4.5mm | Application | Suitable for welding sheet metal |
Product Description
Specifications
Welding rod J421 /E70181.welding electrodes/rods
2.Dia:2.5-5mm
3.length:300-500mm
4.5Kg/box,4boxes/carton
Welding rod J421 /E7018
Chemical Composition of Wire(%):
C | Mn | Si | S | P |
≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
Test Item | σb(MPa) | σc(MPa) | δs(%) | Akv(°C)(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | - |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |
Recommended Welding Current:
Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |

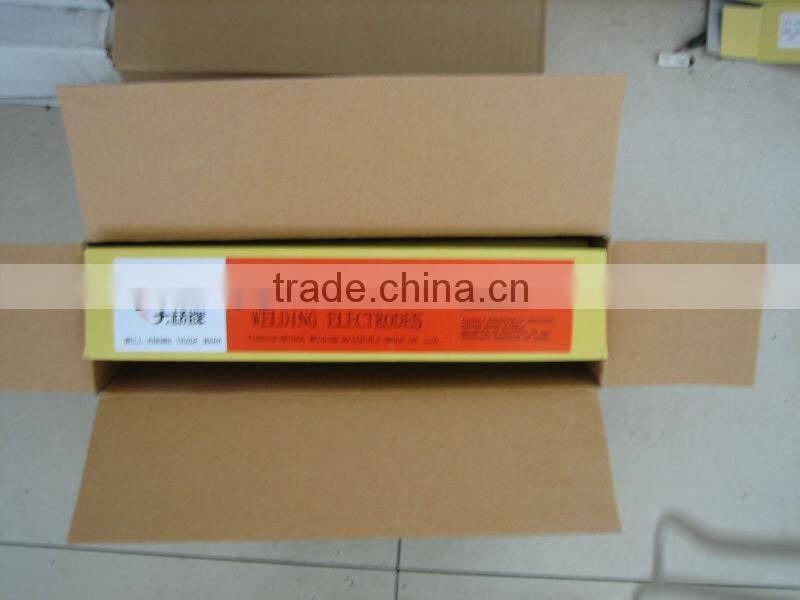

1)detail package is following :
Size: 2.5MM X 300MM
(Packing : 2.5kg/inner boxes 8 boxes/cartons=20kg)
Size: 3.2MM X 350MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
2)inner boxes is a shrink-wrapped cardboard box. what is more , we can do it on pallet as clients 'required. 1MT/Pallet , or 2.5MT/Pallet .
our own bran name : YG Brand what is more , we can also do OEM package as clients required if order quanity meeted .
3)They are widely used in power station boilers, pressure vessels, nuclear and space industries, bridges, ships, vehicles, petroleum and chemical industry, hydropower and thermal power stations, metallurgical industries, skyscrapers, heavy machine equipment, and offshore drilling platforms etc. at home and abroad .
J421 | E4313 | E6013 | Titania Type | AC, DC | For welding low-carbon steel structures, especially suitable for welding on thin plates and cosmetic welding which requires the weld beads to be beautiful and glossy. |
