Magnetic Card Reader Module With Customized Interface
- SZ
- Credit Card
You May Like
-
Designer Crazy Selling Magnetic Card Reader Module Gprs
-
New Safe Smart Card Reader Module for Hot Sale
-
High Quality New Coming Hot Sale Card Reader Module Pinpad
-
Quality Unique Keypad Card Reader Module
-
Design Promotional Usb Check Reader/card Reader Module
-
New Style Low Price Emerald All in One Card Reader Moduel
Product Details
| Place of Origin | Guangdong, China | Brand Name | TTCE | |
| Model Number | R200 |
Product Description

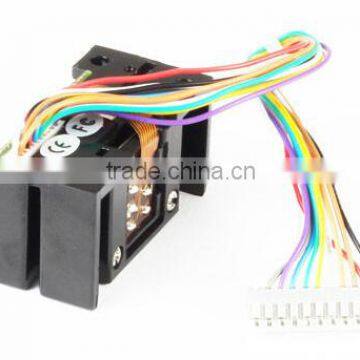

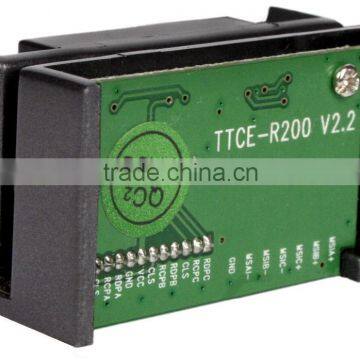

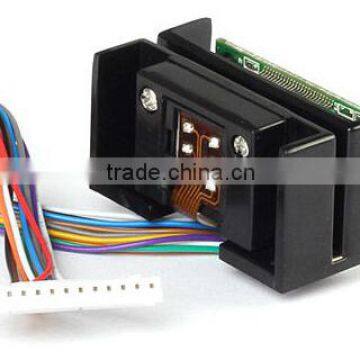

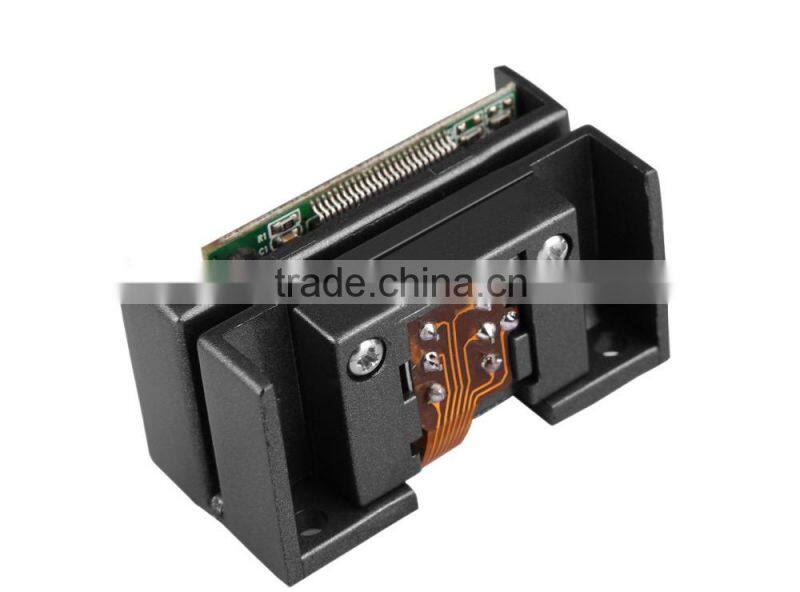

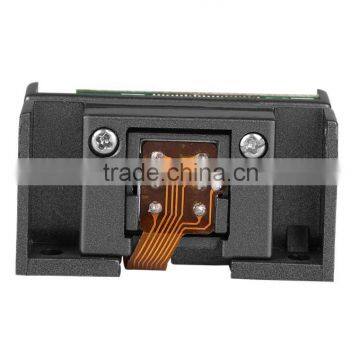

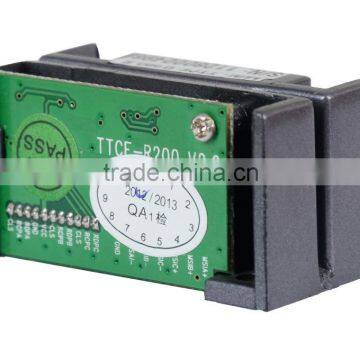

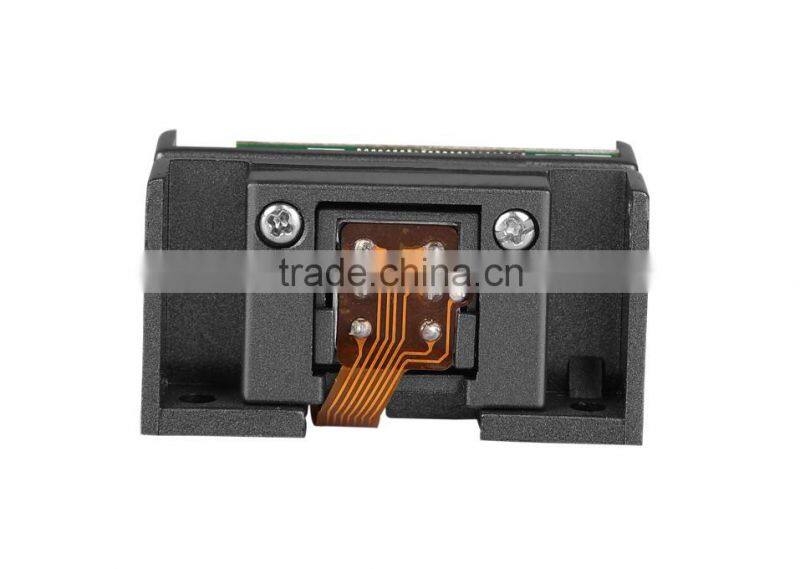

Magnetic Card Reader Module with Customized Interface
Subject | Specification | ||
Track Standard | Comply with ISO7811standard | ||
Decoding method | F2F (FM) | ||
Card reading Density | 210 BPI | 75 BPI | 210 BPI |
Card reading Data bit | The first track79 Characters (7-bit) | The second track 40 Characters(5-bit) | The third track 107 characters(5-bit) |
Card thickness | 0.2~0.84 mm | ||
Suitable Voltage | DC2.7V~DC5.5V | ||
Static current | 4mA/5V | ||
Output ripple voltage | Less than 50mVp-p | ||
Track reading width | 1.5mm | ||
Operation speed | 15 120 cm/sec (6-50inch/sec) | ||
Magnetic head life span | Over 800,000 times | ||
Error rate | Lower than 0.5% | ||
Insulation resistance | 10MΩ | ||
Interface | TTL | ||
Dimension | 43*22*22.5mm | ||
Weight | 30g | ||
This USB Magnetic Card Reader for stripe card/magnetic card reader is hand swipe operated magnetic card reading with USB interface also we can customized for you with nay interface, adopting high integrated magnetic card decoding chip. They have small electricity consumption and strong interference resistance. They comply with ISO-7811, 7812 magnetic card decoding standard completely. It can read card bi-directionally, has intelligent lights to alert if card data is read correctly. Exquisite magnetic installation structure makes card reading more stable and reliable, which is our patented technology. Reasonable product design makes products small and compact.
Features of magnetic card reader:
1. Small footprint to fit in tight places
2. Reads up to 3 tracks of information
3. Bi-directional swipe reading
4. Superior reading of high jitter, scratched, and worn Magstripe cards
5. Relibale for over 1,000,000 card swipes
6. Threaded inserts for mounting
7. Reads ISO7811, AAMVA & most other card data formats
8. Magswipe PC software makes configuration changes easy
APPLICATIONS
(1)POS terminal /Kiosk
(2)ID verification/Authentication
(3)Member management system (4)Inquiry system
1. Packaging :
Small box. 100pcs/Carton. 7.5KG/carton. Packing for 45mm magnetic card reader.
2. Shipping
- Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
- EXPRESS: around 3-7 working days to arrive
- INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
- By sea: depend on which destination port
3.Payment:
- T/T in advance
- Western Union
- Escrow
- L/C
12 months of shipment normally. Some designated models can have as long as 24 months warranty.
Each customer with one of our engineer follow up ,offer 24 hours online service .
RMA Procedure:
If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTEC product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.
Dead-on-Arrival (DOA):
Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
We always offer realiable products ,most of our products with patent and award .
Patent :
Award :
Certification :
