China famous LVHUAN 500KW coal bed gas generator set, less than 25% methane

Company Introduction

Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.

 Our main products are gas generator set, diesel engine and diesel generator set. It forms a series of products, including: Biogas gen-set, Coal mine gen-set, Natural gas gen-set, Biomass gen-set, Coke oven gas gen-set, Gas gen-set, Diesel gen-set and the entire building machine. These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.

We have attained ISO9001, ISO14001 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance .

Parameter of Coal Bed Gas Generator Set

Requirements for Coal Bed Gas Generator Set

 Within 1m from pressure regulating valve of gas intake

 1. Gas temperature ≤40°c

2. Pressure 3 - 20kpa, pressure changing rate ≤1kpa/min

3.  H2S≤200mg/Nm3

4.  If the CH4 covers less than 30%, the total content of CH4 and O2 should not less than 28%, the content of O2 should not less than 16%

5. Impurity particle size ≤ 5μm, impurity content ≤30mg/ Nm3

If there are too much sulfur and ammonia in the gas, it will not only corrode the electrode of sparking plug heavily, but also increase the acid value of engine oil which will corrode the parts inside of genset, easy to generate precipitate and increase the attrition corrosion to the engine.

6. Moisture content ≤40g/Nm3

Raw Materials of Coal Bed Gas Generator Set

Wide Scope of Usage

Our generator sets are widely used to generate power with high and low concentration coal bed gas, etc

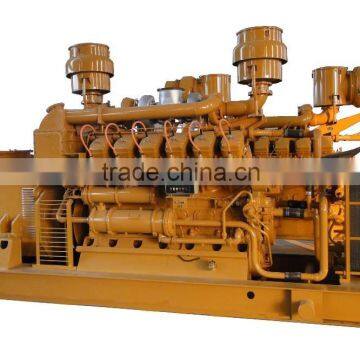

Actual Product Photos

Cetificates

Packaging

Shipping
