Product Details
Place of Origin | Shandong, China | Brand Name | Lvhuan Power | |
Model Number | LHBMG500 | Output Type | AC Three Phase | |
Speed | 1000/1200 rpm | Frequency | 50/60HZ | |
Rated Power | 500kw | Rated Voltage | 400/230V | |
Rated Current | According to the situation |
Product Description
Shandong Lvhuan Power Equipment Co,.Ltd
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
2. Advantage
- Strong structure & Strengthen accessories
- Super performance of electric speed governer & Gas pressure regulation system
- Auto voltage regulation & Stable working condition
- Long using life and low-operation cost
- Easy Start & Auto start
- High quality & imported & accurate gas control system
- Low requirement on gas heat value for easy generation
- Strong control system anti-interference ability
2.Requirements For Biomass Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- Gas temperature ≤ 40℃
- Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
- H2S ≤ 200mg/Nm3
- NH3 ≤ 20mg/Nm3
- Tar Contecnt ≤ 20 mg/Nm3
- Heat value ≥ 4.2MJ/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
3. Main Technical Parameter of 250kw-600kw Power Series Biomass Gas Gen-set
Output power 500kw
Output voltage 400V/230V
Frequency 50/60Hz
Exciting method brushless excitation
Voltage regulation mode antomatic
Phase AC 3-Phase, 4 wire
Application areas Rubbish landfill disposal, animal husbandry and livestock breeding dejection disposal, industrial organism disposal, various of wood and crops
4.Technical Parameters of Biomass Gas Gen-set
Model Number (Engine Type) | LHNG500 |
Brand Name | LVHUAN |
Prime Power/Standby Power | 400KW/500KW |
Rated Speed | 1000/1200RPM |
Rated Frequency | 50/60Hz |
Rated Voltage | 400V/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1s |
Heat consumption | ≤11mj/kw.h |
Lubricant Consumption | ≤1.0g/kw.h |
Engine Capacity | 71.4L |
Cylinder Number | 12-V |
Cylinder Bore | 190mm |
Stroke | 210mm |
Starting System | DC 24V electric motor |
Cooling method | water cooler |
Lubricant method | Passive and flying lubricant |
Isolation class | H |
Protection | IP23 |
Alternator | Siemens |
Power Factor | 0.8 lagging |
Exciting method | brushless |
Colour | your choice |
Certificates | ISO 9001:2008, CE |
Warranty | 1 year or 1000 running hours which arrives first |
Type | Open |
Control system | Automatic alarm system |
Size | 6200x2100x2800mm |
Weight | 12500kg |

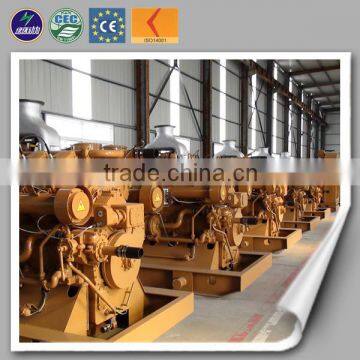

5. More Equipment Pictures
6. General Standard Spare Parts Supplied
7. Project Cases
8. Certificate
9. Sale service
Sincerely welcome to visit our factory and build future cooperation relationship. Helping our customer generating electricity is our purpose.
