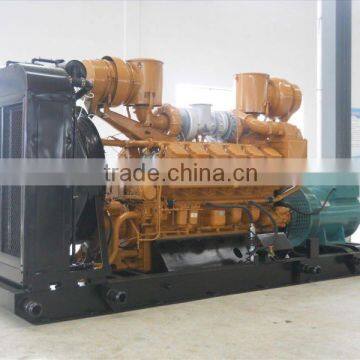

1000kw Diesel Generator

FOB Price

US$ 70,000 - 77,700 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Jichai diesel generator ISO9001,14001
2. China one most famous brand
3. reliable quality
4. excellent work efficiency

ENGINE DATA

Manufacturer	Jinan Diesel Engine Co.,Ltd
Model	G12V190ZL1
Type	Four stroke, water cooled, turbocharged and after-cooled, direct injection
Rated speed(RPM)	1500
Max. output(kW)	992
Cylinder no.	12
Cylinder arrangement	V 60°
Bore/Stroke(mm)	190/210
Total displacement(L)	71.45
Compress ratio	14:1
Intake system	Turbocharged
Governor	Mechanical
Start system	24V, Electrical start
Battery capacity	4×195Ah
Max. allowable back pressure(kPa)	3
Cooling system	Closed water cool
Coolant capacity(L)	250(high); 160(low)
Coolant temp.(°C)	75~80(high); 45(low)
Coolant flow(L/sec)	16.67
Fuel	0#,-10#;-20#;-35#
Fuel consumption(L/h)	205.2
Fuel consumption(g/kwh)	209.4
Lub. Oil	Kunglun CF-4
Oil capacity(L)	200
Oil consumption(g/kwh)	1.6
Oil temp.(°C)	80~95
Lubricating method	Pressure and splash lubrication
Max exhaust temp.(°C)	600
Intake Air flow(m³/min)	93
Exhaust flow(m³/min)	208
Air cycle flow(m³/min)	2100
Radiator dimension(W*H)(mm)	1710*2356.5
Direction of rotation	Counter-clockwise(facing to flywheel)
