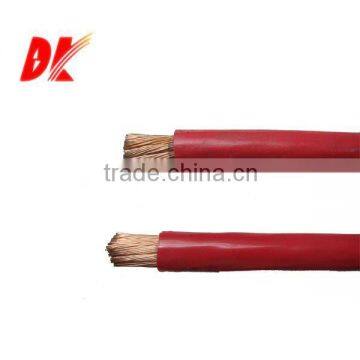

single core H05V-U cable

Specifications

The welding cable details as below:

Applicantion:

As the second side link and the connection of electrode holders, it is applicable to the are welder in which AC voltage is under 200V and pulsant peak value is under 400V.

Type:

1. Cabtyre covered electric welder cable 245 IEC 81 (YH).

2. Chloroprene rubber or other man-made elastomer covered electric welder cable 245 IEC 82 (YHF).

The characteristics of the product description:

1.Uo/U:  450/750V

2.Standard applied: IEC60502, BS7870, GB/T12706

ing temperature: 70°C as per requirement

4.Conductor:  CCA or 100% soft copper .

5.Insulation: PVC insulated

6.Cores:1cores

7.Cross section:  10sqmm - 185sqmm

8.Armoure:  PVC armoure

9.Sheath:PVC Sheath.

10.Color: Orange,white,black or as per requrement .

11.Flame retardant or Fire resistance or low smoking and Halogen Free are available.

12. Roll or Wooden drum or as per request

13.Certification:ISO9001/ISO14001/OHSMS18001/CE/CCC/CB ETC

14.OEM can be available

15.BDK cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.

Main Manufacturing Procedure:

 1, Copper wire drawing and annealing.

2, Copper  wire stranding  .

3,PVC insulation extruding.

4,Cores Twisting.

5,Spooling.

Main Quality Inspection Equipment:

Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester ,Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

All oversea orders are carefully Packed before delivery:

Remark: The cable can be of flame retardance,fire resistance and other property,We can produce according to customer special cables, welcome you directly contact to us immediately
