21 Channel RS485 Meter
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D719003 | Display Type | Digital Only | |
| Phase | Other, 21 Channel | Measuring Energy Range | 21X5(200)A | |
| Accuracy Class | 1.0 | Output Voltage | 3X220/380V | |
| Operating Temperature | -30~+50 | Dimensions | 126*100*66.5mm |
Product Description
21 Channel RS485 meter
As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | 21 Channel RS485 meter | |
Installation type | din rail | |
Module No. | D719003 (RS485 meter) | |
Brand | YTL (RS485 meter) | |
Rated Current | 3X220/380V | |
Reference Voltage | 3X220/380V | |
Frequence | 50/60Hz | |
Display Mode | LCD6+2 | |
Accuracy | 1.0 | |
Impulse Constant | 1000imp/kWh | |
Start Current | 0.4%Ib | |
Connection Mode | CT mode | |
Communication& Protocol | RS485 | |
Power Consumption | IEC standard | |
Material of meter case | ABS | |
Size | 126*100*66.5mm | |
Certificate | CE, ISO9001 | |
Standard | IEC62052-11, IEC62053-21 | |
2.Functions and characteristic | ||
A.This 21 channel meter is configurated 3 channels for voltage sampling, 21 channels for current sampling. It must connect customized CTs outside and its measuring current is 5(200)A. This meter supports three phase four wire system or single phase two wire system, but it must be used as 21pcs single phase meters, not support three phase four wire measurement. | ||
B.It includes: 21 elements forward and reverse energy, 21 elements current, 21 elements power, 21 elements demand, 3 elements voltage and they can be displayed through page. It also can read all the data or set the meter parameters through RS485 communication port remotely. | ||
C | ||
… | ||

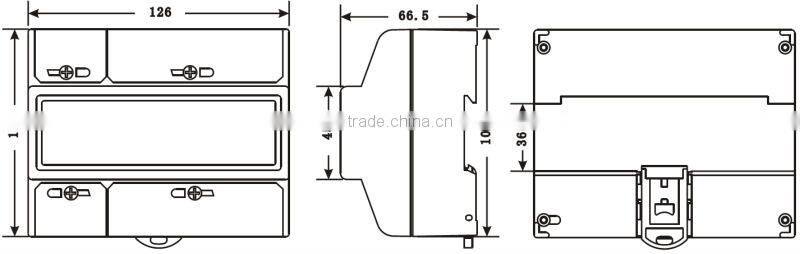

3.Outer and mount dimension: | ||
 | ||
4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 300pcs | |
Sea Port | Shanghai or Ningbo port | |
Payment Terms | T/T, L/C | |
Supply Ability | 50000ocs/month | |
Delivery time | 30days after payment | |
Normal Package | White or color box for RS485 meter | |
If you are interested in our 21 Channel RS485 meter, pls feel free to contact us at any time.
