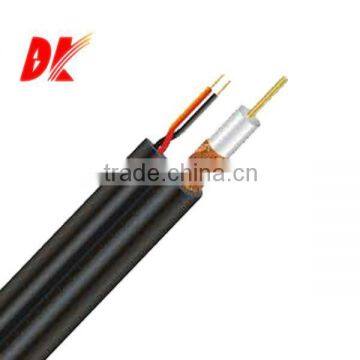

Coaxial cable to hdmi splitter

Specifications

The characteristics of the product description:

1.Max.transmission frequency:1.5GHz

2.Standard: GY/T135

3. Conductor size:0.41mm-1.66mm

4. Conductor: solid bare copper

5.Insulation:PVC

6.Characteristic impedance:75 ohm

7.Shield : Foil+braiding

8.Sheath:PVC Sheath

9.Color: black white or Other

10.Flame retardant,fire resistance or low smoke hologen free or other as per request.

11. 100 meters per roll or as per request

12.Certificate: ISO9001/ISO14001/CCC

13.OEM can be avaliable

14.BDK cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.

Application:These cables are applicable to close circuit TV system below 1.5ghz,public antenna(GATV/MATV/CCTV)as branch line and drop line,equipment line or internal line for other high frequency machine,transmitting high frequent analogue signal,digital signal,video and audio signal.Moresuitable for digital TV video transmission.

Main Manufacturing Procedure:

1.Copper wire drawing and annealing.

2.Copper wire stranding.

3.Foam PE or solid PE insulation extruding

4.Braiding screen shield.

5. PVC outer jacket

6.Spooling.

Main Quality Inspection Equipment:

Spark teser,Heating aging chamber,High resistance machine ,Oxygen index equipment,Partial discharge inspection instruments,Fireproof testing device,High-Power voltage withstand tester,No-Rotor vulkameter,pull tester,Analytical balance,Dired Currend bridge,Plastic,Tester,Projector,Punch Machine ,Cross-linked cutting mackine,etc

All oversea orders are carefully Packed before delivery:

Remark: The cable can be of flame retardance,fire resistance and other property,We can produce according to customer special cables, welcome you directly contact to us immediately.
