Home > Products > Coaxial Cable > America standard RG11 coaxial cable

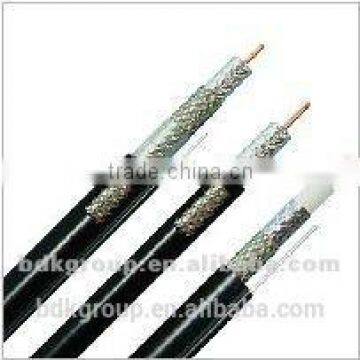

America standard RG11 coaxial cable
- Shenzhen Port
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | BDK | |
| Model Number | RG6, RG59,RG11 coaxial cable | Type | Coaxial | |
| Application | Multimedia | Color | Other, According to your requirement | |
| Packing | Coil | Shielding | Foil |
Product Description
Specification:
1.Type:Coaxial cable, RG6, RG59, RG11, SYWV-75-5, SYWV-75-7, SYV 75-C, SYV75-5
2.Max. transmission frequency:1.5GHz
3.Characteristic impedance 75 ohm
4.Conductor size (solid bare copper):Mini RG59: 0.41mm; RG59:0.81mm; RG6: 1.02mm;RG11:1.63mm; SYWV-75-7:1.66mm
5.Application
These cables are applicable to close circuit TV system below 1.5Ghz, public antenna (CATV/MATV/CCTV) as branch line and drop line, equipment line or internal line for other high frequency machine, transmitting high frequent analogue signal, digital signal, video and audio signal. More suitable for digital TV video transmission.
6.Standard:GY/T135
7.Constructions
Conductor: solid bare copper
Insulation: solid PE or physical foam PE
Shield: Al foil+Al-Mg alloy braiding or copper wire braiding or tinned copper wire braiding
Sheath: PVC
8.Packing:100 meters per roll or 200 meters per roll
