adjustment 1-200 seconds songle Cycle time Delay relay switch Module 12v 10A

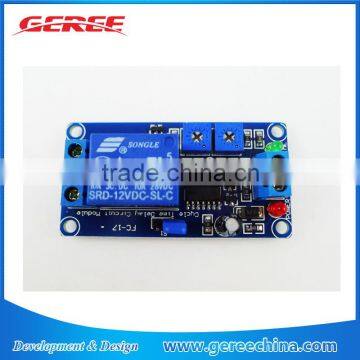

NEW 12V Cycle Delay Module Cycle Relay Switch Relay Module

Product Application:
This module is a cyclic delay module, often used in the product life test, aging test automation equipment testing, PLC industrial controls, electronic development arduino robot, is extensively used.

Products Introduce:
1. Using advanced quality timing chip control and accurate timing performance is far better than the 555 chip;
2. Has anti-film reverse protection diode, better protection module;
3. Relay is turned on and off times individually adjustable potentiometer function;
4. Can be accessed by a large current load (250V ac 10 A or 30V dc 10A);
5. Output relays have normally open, normally closed selection.

Features:
When the module is powered up, the relay immediately pull the pull-in time can be adjust by potentiometer 1-200 seconds (or so), the relay automatically enter the end of time is timing relay disconnected state off time can also be potentiometer adjustment 1-200 seconds (or so), the end of the off-time timing, and then into the pull-in state, followed by circulation, only power will stop working.

Relay load capacity:
250V 10A AC the ideal (2500W power exchange)
30V 10A DC (300W ideal power DC)
The practical application of the best power halved to use, beneficial products to prolong life.

Package include:
 1 x 12V Cycle Delay Module
