Home > Products > Power supply Module > DC DC Converter Boost 10-32V to 36V-60V 120W Step Up Voltage Power Supply MAX 5A

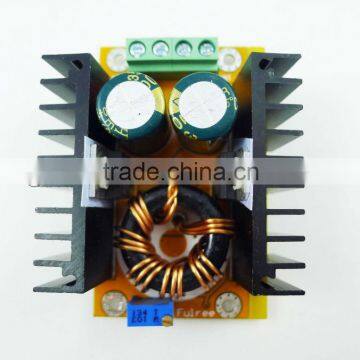

DC DC Converter Boost 10-32V to 36V-60V 120W Step Up Voltage Power Supply MAX 5A
Negotiable
/ Piece
20 Pieces(Min. Order)
- shenzhen/HK
- T/T Credit Card
You May Like
-
DC DC10-32V to 36V-60V step-up converter 120W MAX5A
-
4-35V input DC to DC Converter Boost Buck Step Up Step Down Module constant current voltage
-
200W Step Up Voltage Power Supply MAX 15A DC DC Converter Boost 8-32V to 9-46V 150W Step Up Voltage Power Supply MAX 15A
-
DC DC Converter USB Charger Boost Module step up 3V to 5V 1A for Phone iphone
-
5V to 12V voltage plate board, DIY electronic suite,DIY parts
-
Digital Led 400W 10A DC Step-up constant voltage current boost Converter 8V-80V
Product Details
| Model Number | U013V | Type | Voltage Regulator | |
| Brand Name | Geree | Place of Origin | Guangdong, China |
Product Description
Specifications
1)120W Boost DC-DC 10-32V to 36-60V Converter2)Input: 10-32V, Output: 36-60V 5A
120W Boost DC-DC 10-32V to 36-60V Converter
Input: 10-32V, Output: 36-60V 5A
Featrure:
- Module Properties: non-isolated step-up module (BOOST)
- Input voltage :10-32V
- Output voltage: 36-60V (adjustable)
- Output Current: 5A (MAX)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 82W (MAX), enhance heat dissipation 120W (MAX)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45°c
- No-load current: 25mA typical
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
