Africa Popular Alluvial Mining Equipment Manufacturers
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 99% | Place of Origin | Shandong, China | |
| Brand Name | Heng An | Model Number | HATJ-100 | |
| Voltage | 220/380v | Power(W) | 50KW | |
| Dimension(L*W*H) | 8300*2400*4200mm | Weight | 15TONS | |
| Certification | ISO | Warranty | 12MONTHS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Africa Popular alluvial mining equipment manufacturers
Our Advantage of gold wash plant :
1.Good quality raw material to make the gold wash plant strong enough,
2.Patent design and experienced worker to make the performance amazing,
3.Engineer do installment and guide in t he working place directly to make sure the gold wash plant will work well..
Our Company for gola wash plant:
Weifang Heng An Radiator Group was founded in 1975. Now Heng An Group is a comprehensive production company, which produce radiator, cooling tower, ore mining machinery, sand dredger and other custom build machinery.
Our g gold recovery plant :
We are professional on supplying gold trommel ,gold sluice, shakin table and other kinds of gold wash plant ,we exported to more than 20 countries such as Ghana .uth Korea .
gold recovery plant HOT SALE :
HATJ Mobile Gold Trommel Wash Plant. The capacity is from 100 to 500 ton per hour. Use best material and parts. Top quality, amazing performance, and longest life.
For now, we are the only one company, which can produce 500 ton/h gold mobile trommel wash plant in China.
Main Parameter | ||||
Model | HATJ-50 | HATJ-100 | HATJ-200 | |
Performance | ||||
Dimension (L*W*H) (mm) | 6600x2200x3200 | 8300*2400*4200 | 9800*3000*5175 | |
Processing Capacity (t/h) | 50-100 | 100-300 | 300-500 | |
Main Power | ||||
Diesel engine | ||||
Power | 36KW | 50kw | 75kw | |

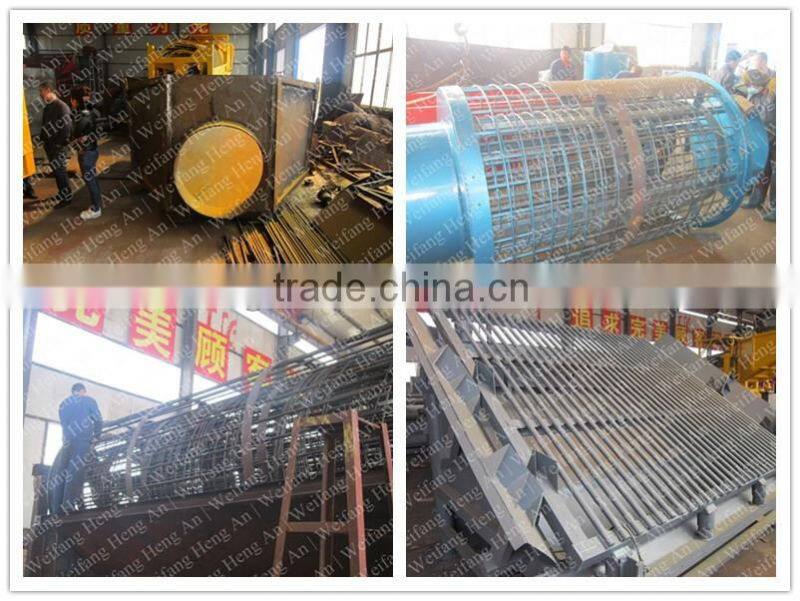

Trommel Screen | ||||
Size (dia*length) | 1300x3000 | 1500x4500mm | 2000x5000mm | |
Power | 7.5KW | 15kw | 30kw | |
Screen material | 20CrMo | 20CrMo | 20CrMo | |
Feeder hopper | ||||
Size (L*W*H) | 1000*6000 | 3000*2200*1800mm | 3800*3000mm | |
Water system | ||||
Pump Power | 15kw | 22kw | 30kw | |
Water flow | 174m3/h | 224m3/h | 240m3/h | |
Head | 24m | 27.8m | 32m | |
Optional equipment | ||||
Grizzly, Conveyor, Sluice, Concentrator etc. | ||||
Why you choose our gold recovery plant :
1.Good quality material and professional production,make sure the gold machine have a long time useful life:
2.Strictly teatingfor our gold machine before shipment to make sure the quality for the customers:

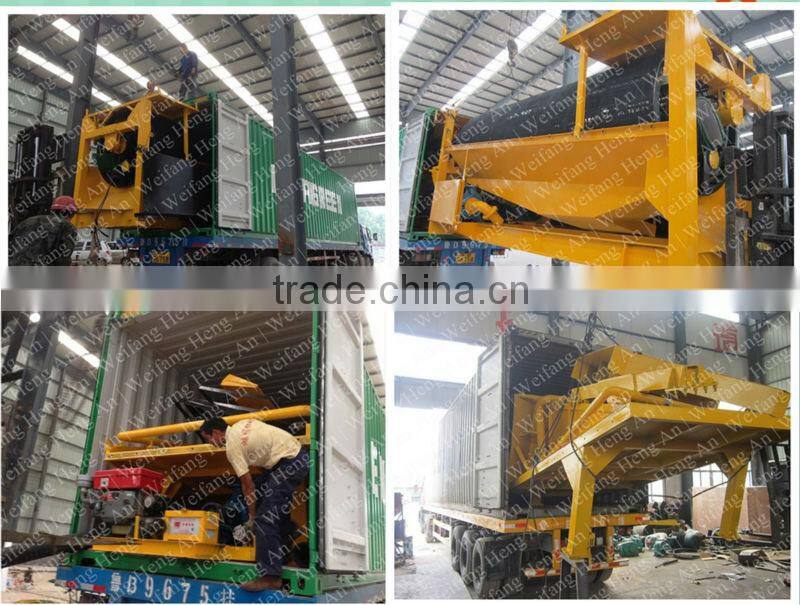

3.Professional loading team and good shipping company to make sure our gold machine can fnd you more quality.
4.Other implements for your choosing :
Fluctuate Sluice:
Due to high recover rate and low price, fluctuate sluice is more and more popular in gold mining market. Old mine start to replace old fix sluice by new fluctuate sluice.

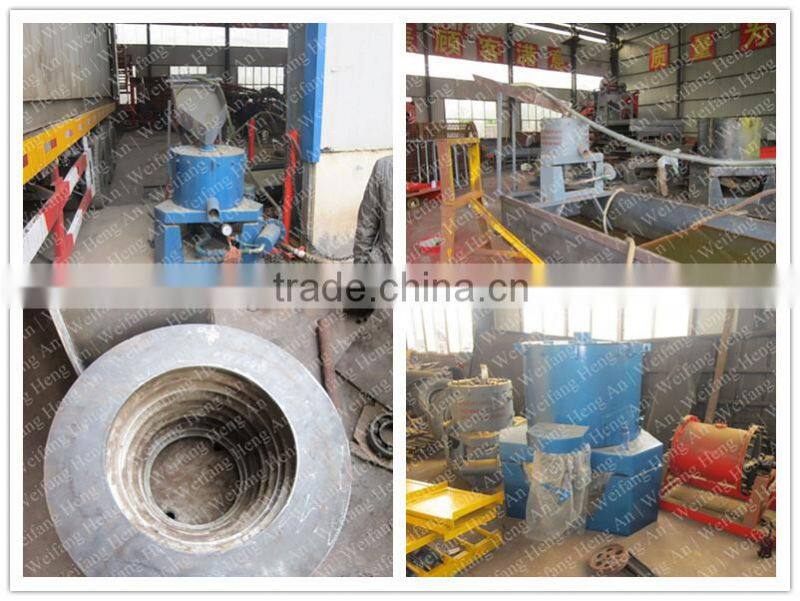

concentrator
It not only used for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Beneficiation test shows that the recovery can be 99%, especially for recovering the natural lode ore gold, when 65% Grind size are smaller than 0.074mm, the recovery is expected up to 98%. For 0.004mm size natural gold, the recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.
Gold Furnace
Heat up and melt gold fastly by Intermediate Frequency Induction.Melt 1-50KG per single time, each time is 2-20 minutes.Max. Tempreture is 1500-1800°C. Come with circulatory water cooling system.

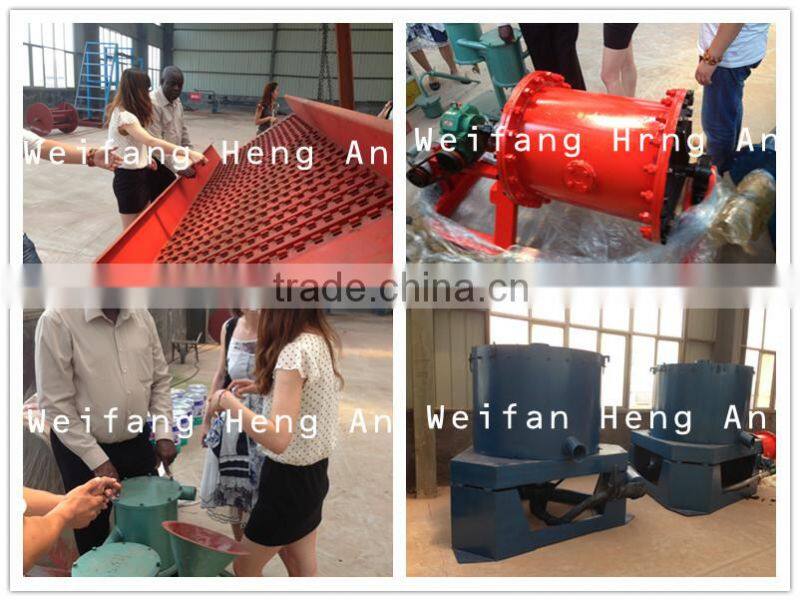

Differennt clients visiitng :
Workin in Africa :
Please also let me know :
1.What is your required working capacity ?
2.Whait is the diameter of your gold ?
Please feel free to contact me if you have any other problem
