Gold Panning Gold Mining

• Weifang Heng An Imp&Exp Co., Ltd
•  Parent Company: Weifang Heng An Radiator Group Co., Ltd (Founded in 1975)
• China Top Gold Mining Equipment Manufacturer
• For Gold Mining, Gold Washing, Gold Panning!

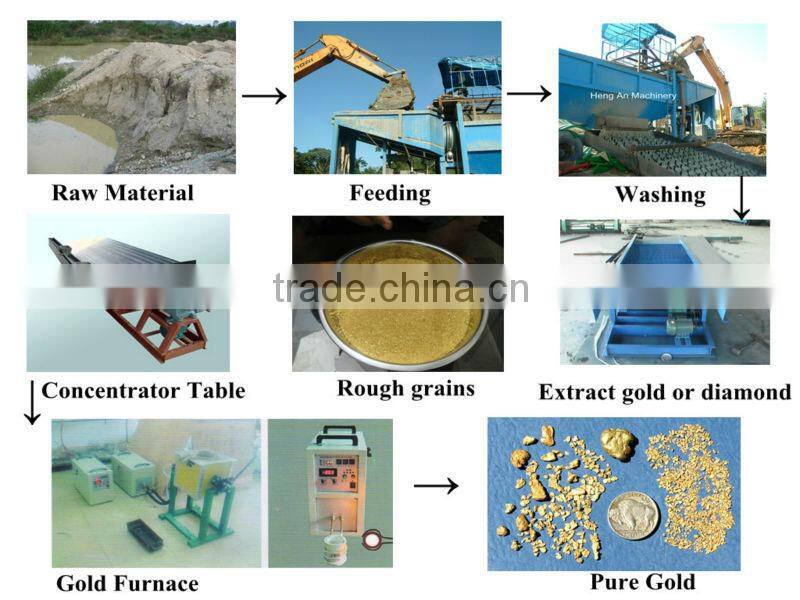

Gold Wash Plant Working Process

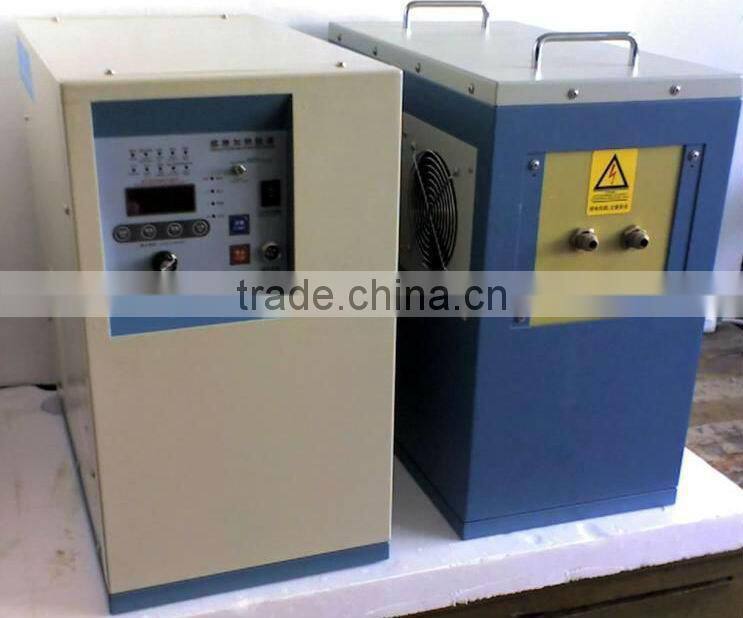

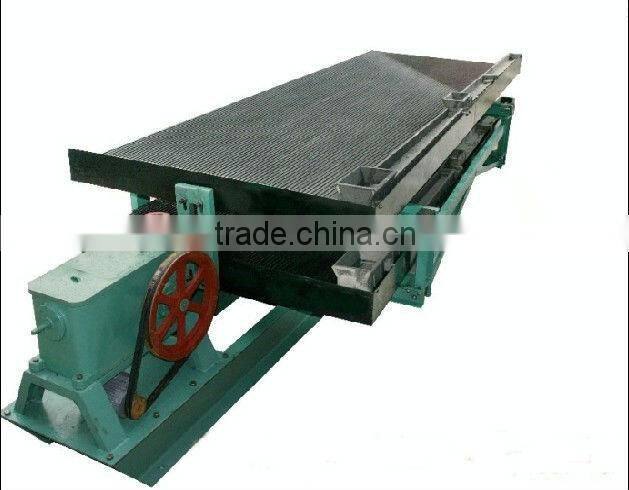

Load Raw Material to Hopper—>Scrubber—>Washing Trommel—>Sluice or Concentrator—>Shaking Table—>Gold Furnace

This Gold Trommel Wash Plant is easy to move, even if move it in Jungle.

The plant use gravity principle, whip and wash raw material in scrubber and trommel. It fixed all negative factor caused by high mud percent. The plant can be adjust in gold mine site, based on ore and field.

Gold Wash Plant Working Process

Hopper—>Scrubber—>Washing Trommel—>Sluice or Concentrator—>Shaking Table—>Gold Furnace

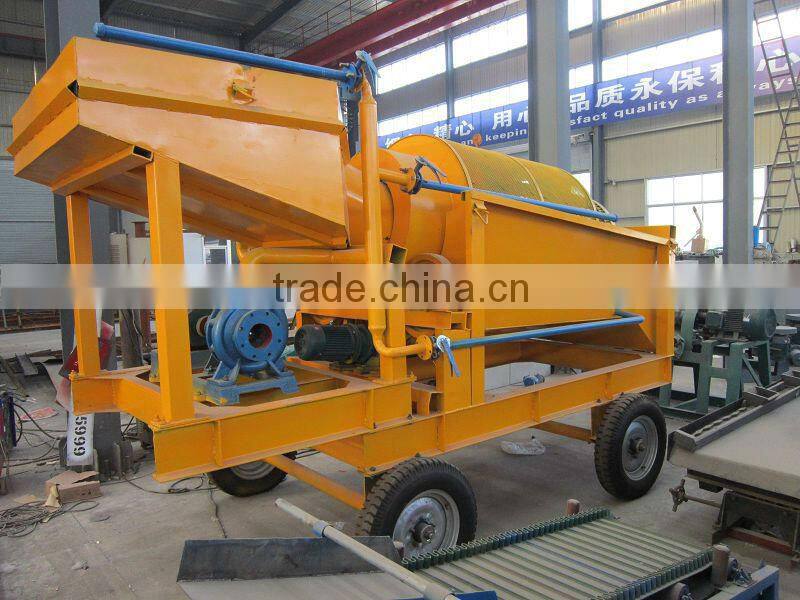

Heng An Mobile Gold Trommel Wash Plant is a land removable gold mining equipment. It’s high integrated, unitary, easy control, big capacity, stable working, easy maintain, and easy moving.

Our engineer can go oversea to install our plant.

20-30 ton/h, 30-50 ton/h, 50-70 ton/h, 100-140 ton/h Gold Trommel Wash Plant.

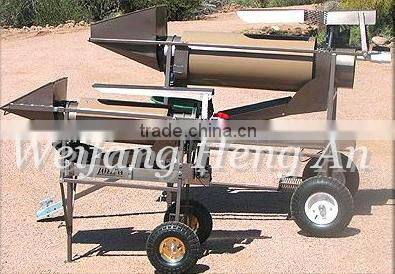

Small Gold Trommel Wash Plant, Low Investment, High output.

We customized gold trommel wash plant for clients.

Most alluvial gold mine are using Sluice for roughing. Fine gold are using gold concentrator.

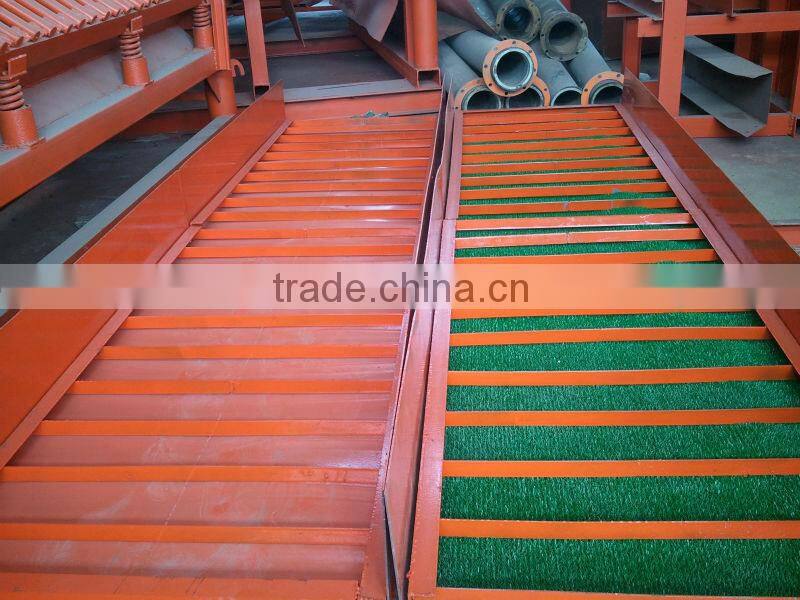

• Fixed Sluice

Fixed sluice are simple design, no need for power, big capacity, for coarse granule, big concentration ratio, easy maintain and easy use. But high strength work are for sluice cleaning. Fixed Sluice can do nothing for fine gold. Generally, fixed sluice gold recover rate is lower than 50%.

Fixed Sluice come with Gold Carpet.

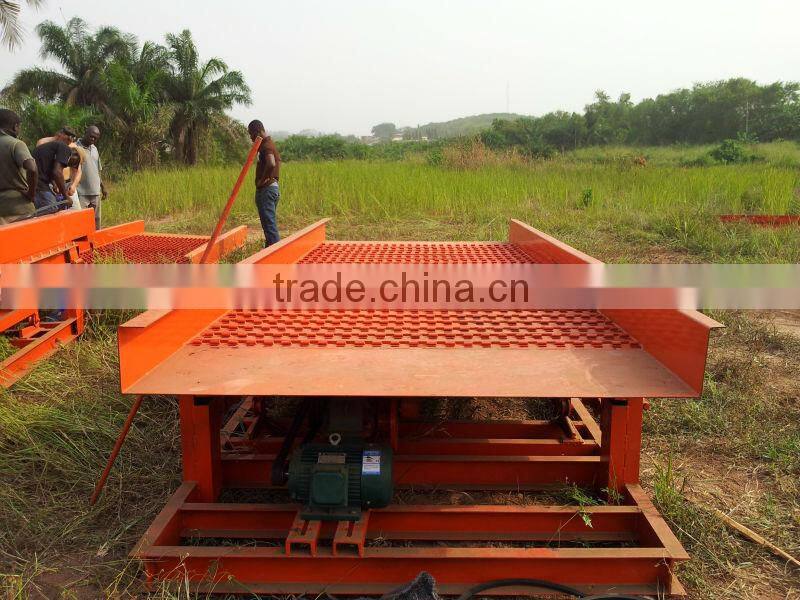

• Fluctuate Sluice

Due to high recover rate and low price, fluctuate sluice is more and more popular in gold mining market. More and more gold mining company disuse old fixed sluice, and buy fluctuate sluice.

Fluctuate sluice is easy and fast for cleanning. It only take 10-15 minutes to cleaning and recover gold sand, every 6 hours.

STL Concentrator is a copy of Knelson Concentrator. It is not only used in placer gold mining, but also in hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

Our gold concentrator is a copy of Knelson Type concentrator. We have 5 models. Application shows that the recovery can be as high as 99%, especially for natural gold in lode ore with 65% milling size of 0.074mm, the recovery for the natural gold is expected up to 98%. For natural gold of 0.004mm in particle size, the recovery is 97%.

The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.
