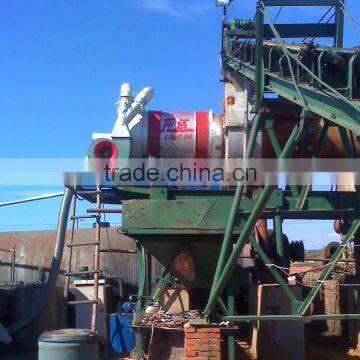

FMRS80 Rotation pulverized coal burner

FMRS80 type pulverized coal combustion device configuration and parameters

Composition:
FMR80 type pulverized coal combustion device by automatic coal scuttle, rotating furnace (model: LT80), pulverized coal machine (model: FMJ100), coal, fuel firing system (model: RY15), electric control system of six parts.

 the main parameters:
1. The chamber of a stove or furnace:
Fan model: 4-72 no. 4 a fan power: 5.5 kW
Coal quantity: 1000 kg/h rotary motor: 0.75 kW
Features: 1), double duct for wind, high thermal efficiency.
2), a rotary furnace, oven heated evenly, and reduce the slagging in the hearth.
3), external instruction in crater, easy ignition.
2. Pulverized coal machine:
Into the coal particle size: < the coal particle size: 25 mm or less 200 mesh
Rated output: 1000 kg/h motor power: 45 kW

The coal quality requirements:
1.3.1. The fixed carbon content > 60% 1.3.2. Calorific value > 5500 kcal/kg
1.3.3. Volatile content > 20% 1.3.4. Ash content < 8%
1.3.5. Water content < 2% 1.3.6. Sulfur content < 1%
equipment technical indicators
Production capacity: 1000 kg/h operation mode: manual
Total power: 55 kw maximum motor power: 45 kw
The weight: 6 t
Overall dimension: length x width x height: 7 * 2 * 1.5 m3
 the user should bring along their own projects:
1. The transformer, transformer to control room of the cable;
2. Equipment foundation used materials;
3. The hydraulic oil and lubricating oil, grease.
