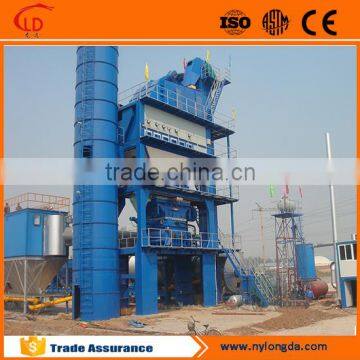

LB 3000 Asphalt Batch Mixing Plant

LB3000 Asphalt Batch Mixing Plant adopts modular structure, reasonable layout, simple and compact structure. This asphalt mixing plant is convenient for transport and install.
Compared with other asphalt plants of the same type at home and abroad, LB1000 asphalt mixing plant is more economic and energy-saving and has higher quality.

Configuration of LB3000 asphalt Batch Mixing Plant

1. Cold Aggregate Feed System: 5*15m3 storage bins

2. Drying Drum: Φ2550*10000mm

3. Oil Burner: made in Italy, capacity: 2200kg/h

4. Dust Collection System:bag house collector/water collector for optional

5. Filler Supply System: 2*40m3 filler bin(adjustable)

6. Bitumen Supplying System:3*30m3 bitumen tank(adjustable) with thermal oil heating system

7. Mixing Tower:1500kg/batch twin shaft mixer, 2*45kW Siemens's motor

8. Pneumatic System: 4.2Nm3/min air compressor

9. Finished Asphalt Storage Bin: 80t storage bin under mixer

10. Control System: PLC control system(language for optional)

Main Technical Parameters of LB3000 Asphalt Batch Mixing Plant

1.12 months warranty;

2.Erecting the plant;

3.Commissioning the plant;

4.Training the operator;

5.Providing of spare parts;

6.whole life’s technical consultant of the plant.

1.Cold Aggregate Supply System

Bin volume and number is customizable, Separated structure design significantly reduces dimensions for shipping and ensures a high capacity. Two independent cold feeders and modular design transport expediently. Seamless ring belt, high reliability and long life. Frequency convertor controlled SIEMENS motor, infinite variable speed adjustment, more accurate and energy saving.

2.Drying Drum

SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably. Optimized lift blade design, make sure heating equably and high energy using ratio. With 50mm insulating layer and stainless steel skin, avoid heat be lost.

3.Burner

Italy EBICO oil burner imported with original packing, high burning efficiency, diesel, diesel/heavy oil dual purpose or gas as fuel is optional. With automatic flame failure protection devices for emergency.

4.Dust collection System

Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security. Bag house collector use USA DuPont NEMEX bags, heat resisting and long life.

5.Mixing Tower

6.Bitumen Supply System

Volume and number of bitumen tanks is customizable according to user requirement. Heat transfer oil heating type, heating equably.

7.Filler supply system

8.Control system

Automatic/manual control system, with fault self-diagnosis process, operates easily and safely.

SIEMENS PLC electrical control system, reliability is high. Fully graphic Multilanguage control interface is easy and convenient for different operators.

Main characteristics of LB series Bitumen Mixture Mixer

• Novel structure,compact layout,easy to install and move
• Low cost,the weighting accuracy of aggregate and bitumen is high
• The discharaging -dust meets the requirements for national environmental protection
• Advanced control system,can realize automatic,semi-automatic and manual control
• The main parts are selected th e inported brand products,it is reliable and steady for the performance
