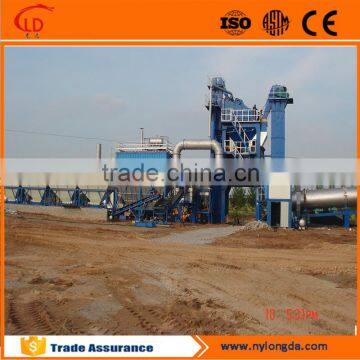

LB 800 asphalt batch mixing plant
- 35 Set / Sets per Month
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
Bitumen Batching Machine 64t/h Asphalt Mixing Plant with Cheap Price
-
Road Construction Asphalt batch mixing plant for sale, LB2000
-
LB 1500 New Intelligent Bitumen Sprayer for road construction/Asphalt Mixing Plan
-
LB1000 bitumen manufacturing plant/asphalt emulsion plant
-
200t/h (LB2500) asphalt mixing plant manufacture in China with low price
-
100tph asphalt plant for sale,asphalt hot mix plant
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | LD | Model Number | LB800 | |
| Voltage | 220V/380V-50Hz | Power(W) | 230kw | |
| Dimension(L*W*H) | 40HQ | Weight | 7 Tons | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Brief Introduction of LB 800 Asphalt Batch Mixing Plant
LB800 asphalt mixing plant is quite popular for its compact structure, reasonable layout and stable performance. This model asphalt plant is ideal for small road construction projects.
LB800 asphalt mixing plant is easy to install and dismantle with short transport period for its modular design. Compared with other large asphalt plant equipment, LB500 asphalt plant provide oil furnace heating and free heating burner for choose and bag house and water dust collector for choose.
Configuration of LB 800 asphalt Batch Mixing Plant
1.Cold Aggregate Feed System: 4*4 m3 storage bins
2. Drying Drum: Φ1200*5200mm
3. Oil Burner: made in Italy, capacity: 500kg/h
4. Dust Collection System: water collector
5. Filler Supply System: 0.5m3 filler bin (adjustable)
6. Bitumen Supplying System: 1*20m3 bitumen tank (adjustable)
7. Mixing Tower: 500kg/batch twin shaft mixer, 22kW Siemens's motor
8. Pneumatic System: 1.05Nm3/min air compressor
9. Finished Asphalt Storage Bin: 30t storage bin under mixer
10. Control System: PLC control system(language for optional)
1.Cold Aggregate Supply System
2.Drying Drum
3.Dust collector
Main Technical Parameters of LB800 Asphalt Batch Mixing Plant
Model | LB800 | |
Capacity | 64t/h (standard working condition) | |
Mixer Capacity | 800kg/batch | |
Drying Drum | Φ1200*6300mm | |
Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
Measurement Accuracy | Aggregate | ±0.5% |
Filler | ±0.5% | |
Bitumen | ±0.25% | |
Finished Asphalt Temperature | 130℃-165℃ | |
Dust Collector | gravitational dust collector & Second baghouse dust collector | |
Air Emissions | ≤20mg/Nm³ | |
Dark exhaust standard | Ringelmann I | |
Working room noise | ≤70db(A) | |
Environment noise | ≤80db(A) | |
Operation | Full Auto/Manual Operation | |
Total Installation Power | ≈199kW | |
Voltage | 220V/380V-50Hz (adjustable) | |
Plant Covering Area | Length: 25m; width: 20m; max height point: 14m | |
--Installation and commissioning and acceptance
1). Our company will offer the buyer assistance of the equipment installation, commission ;
2). Each unit after installation will have returning visit by specialized departments;
--Technical material, warranty and free service
1). We will offer the buyer free training for their operator and maintenance worker, and also provide free technical advice services;
2). And company will organize technology training courses regularly, and give free training the buyer's operator.
--Spare parts supply services in time
Our company offers the original, authentic, quality spare parts for the machine maintenance accessories.
