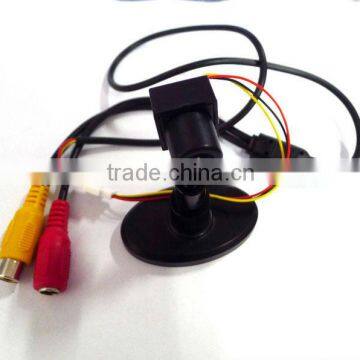

480tvl CCTV 1/4 cmos DSP super Security Surveillance mini color camera

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1)1/4 cmos mini camera
2)with 360deg turning rest
3)90Deg view +3.6-24v wide voltage+480tvl

480tvl HD CCTV Security 1/4 cmos super hidden camera

Overview:
It is the smallest wired CCTV camera that have ever built in the world. It is super mini & thin size, lightweight, low power consumption, high resolution,high sensitivity, easy to install, operate and also easy to conseal. 1/4 cmos mini camera with 360deg turning rest 90Deg view +3.6-24v wide voltage+480tvl

Features:
1.Small Size: easy to install into narrow room and slim tube, etc.; 2.Light Weight: easy install without causing unnecessary damage on object surface; 3.High resolution, high sensitivity, high SNR; 4.Day & night dual mode auto switch; 5.Low Illumination, high quality video record function; 6.Low Current and power consumption; 7.CMOS sensor generation IV+DSP chip offer true color & HD video.
Specifications:
PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:720(H)×480(V)	PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.05Lux/F1.2
LENS & VIEW ANGLE	F1.2 / 90 Deg.
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE(LXWXH)	MC91:15.5X15.5X20mm; MC91A: 15.5X15.5X22.5mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC:3.6V-24V
OPERATING TEMPERATURE	- 10 deg. To +50 deg. ,less than 90% RH
Applications:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
