2015 New Products Floor Hinge (Floor Spring) For 125kg Glass Door Two adjustable Speed

2015 New Products Floor Hinge (Floor Spring) For 125kg Glass Door Two adjustable Speed

1.All floor spring passed over 500,000 opening-closing tests,Internal decompression valve to prevent it from closing by extro pressure or strong wind.

2.Adding hydraulic lubrication with a freezing point of low than -40'c,which is applicable  to all weather installation.

3.The door can be opened by max 116' and closing effect function from 90' along with double-stage adjustment. door floor spring

4. Maxinum door weight is 130kgs, door width is 1100*2400mm.

5. Oil leaking rate: less than 1/20000

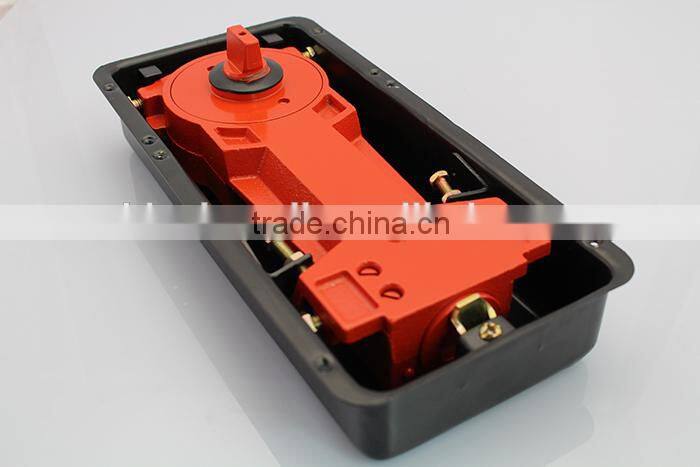

 Product Show Of Floor Hinge (Floor Spring)

Product Description Of Floor Hinge (Floor Spring)

ModelNO.	DBA-63 Floor/hinge spring
Dimension of appearance
Speed control :	Two adjustable Speed
Closing Speed Adjustment:	Speed 1 for 0°-20°
	Speed 2 for 20°-90°
case Size	29*12.5*5.5cm
Net weight:	4.5kg
Max.Door size:	1000*2400mm
Applicable door weight:	125kg
Logo:	DBA
Maximum Open Angle:	116°
Cam type:	MAB/GMT/DUOMA
Bearing:	Chrome steel
Oil material:	low temperature hydraulic fluid
Material:	cast iron
Cover material:	SS-201#,SS-304#,Iron
Cover plating:	Rose gold,Golden,Silver
Cover thickness:	0.8-1.2MM
Color:	Black/Orange/Silver/Blue/Green
Features:	500000cycles tested
90°Hold-Open Angle:	yes
Available for:	Shopping mall, house,hotel, conference, office, Using for 8/10/12mm glass door
Guarantee year:	3 year
Packing:	each white box 4set/ctns.30*28.5*21.5mm
Place of Origin:	Guangdong China (Mainland)
MOQ:	100 pcs
Export port:	Guangzhou/Shenzhen
Supply Ability:	20,000/month
Sample time:	3-7 days
Delivery Date:	15-20 days  after receiving deposit
Payment Term:	L/C,D/A,D/P,T/T

Guangzhou QianBao Trading Company.
Our factory is Gaoyao Jinli New Hardware Factory, which was established in 1998 and have 16 years experience in this line.
Our main business scope is Door Control and Sanitary Hardware, such as Floor sring, Door closer, Patch fitting, Glass door lock and Bathroom accessories and we possess two brands which are "BANGLi" and "DBA".
Our products are exported to all over the world and received highly reputation from home to abroad.
" Integrity attitude, Advanced technology, Competitive price and Good service" make us win strong support from many customers.

• Our working time from Monday to Saturday , 9:00 am to 6:00 pm(China mainland time). You are welcome to chact with us on line during that time.

• We will reply your email in the first time during our working time.

• No excuse of replacing the inferior quality products.

• Inspected photos for each bill of cargo will send to you for reference before shipping.

• Loading images will saved and send as you wish.

• Long term win-win business are always been expected.

Payment:

• Our company accept T/T, L/C, D/P, Western Union, Escrow as our payment.

• We would like to request 30% payment of the total as deposit, before producing the balance before delivery.

Our Package:

• To protect our cargo during the shipping, we usually use hard paper carton which will add some foam boards between glass and the paper board. Also the angle bead will be used for each angle of the glass.

• In order to avoid the damage from the transport the wooden case will request by our clients, while it will request some extra charges. If you have requests about it, please make an announcement when you contact us.

About Shipping:

• Since our enclosure belongs to the frigile cargo, we do not suggest your goods shipping without wooden package (wooden package will request extra charges).

• The measurement of our goods beyond the length limitation of the express. So unless necessary, please do not shipping the cargo by air. While except the enclosure components.
