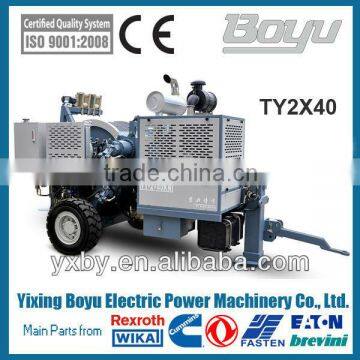

Max continuous tension: 2X40KN Hydraulic tensioner

1.Main parts German Rexroth Wika
2.Max tension 2X40kN
3.Engine Cummins
4.Twin-bundle conductor

Max continuous tension: 2X40KN Hydraulic tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas,

of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;

besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

 Performance parameter

Max continuous tension: 2*40KN

Corresponding speed:2.5km/h

Max continous laying speed:5km/h

Corresponding tension:2*35KN

Structure parameter

Tension wheel diameter:1300/1500mm

Max diameter of applicable :40mm

Groove number:2*5

Total weight:5800kg

overall dimension (length*width*height):4300*2250*2700mm

Main comfigurations

Engine:Cummins

Main motor:German Rexroth

Speed reducer :German Rexroth

Hydraulic meter: German WIKA

More pictures:

Production workshop

Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany.

....
