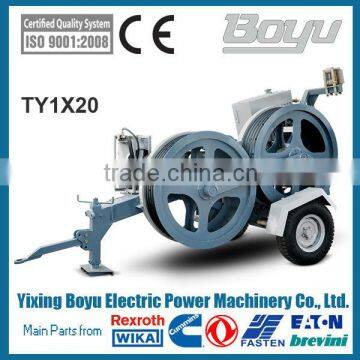

TY1X20 Steel Cable Hydraulic tensioner

1.Main parts Rexroth Wika
2.Max tension 1X20kN
3.No engine
4.Wheel 1300mm

TY1X20 Steel Cable Hydraulic tensioner

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break,

high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.

The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is

also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be

loaded, transported and transferred.

 Performance parameter

Max continuous tension: 1*20KN

Max speed:5km/h

Structure parameter

Tension wheel diameter:1300mm

Max diameter of applicable :40mm

Groove number:5

Total weight:1920kg

overall dimension (length*width*height):4080*1930*2300mm

Main comfigurations

Main motor: Tianjin Parker

Speed reducer :German Rexroth

Hydraulic meter: German WIKA

More pictures:

Production workshop

Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany.
