1550nm catv ftth agc optic receiver node in plsastic Shell

1550nm catv ftth agc optic receiver node in plsastic Shell

Product Description

OR17x style FTTH optical receiver is home-based optical receiver catering to the ultimate

Goal of development of optical access and suitable for FTTH (fiber to the home) optical fiber network users access to the end.

It adopts low optical power detector, GaAs and optical control AGC technique which meet to the demands of FTTH CATV receiving. They are many kinds of different function which has a little difference to meet low cost. OR17B can bring user’s economic application with optical control AGC technique.OR17D has low noise and optical AGC.

Performance Characteristic

1.Advanced plastic house with good heat Dissipation

2. SC/APC or FC/APC optical connector, female or metric RF interface

3. Full-GaAs MMIC application with low noise. Digital signal is received -18dBm at lowest and analogy signal -9dBm at lowest.

4. with AGC control range( AGC range according to User's demands)

5. Low power consumption, high-efficiency switch power can make sure the high reliability and stability of power supply. Power consumption less than 2W. It adopts optical detecting circuit.

6. Multi-stage anti-thunder devices (TVS transient suppression diode), strictly anti-thunder system to ensure the safe operation of the equipment

7.Anti-high-frequency surge protection devices GaAs amplifier tubes

8.It can realize the power supply of input port feeding.

 Technical Parameter

Note3: In the prescriptive link loss, 60PAL-D analog CHs, every 2MHz among 550MHz-750MHz/860MHz conveys digital modulated signals. Digital modulated signals level is 10dBm lower than analogy signal carrier when optical input power is -4dBm. Test result ranges from different optical receiver configuration and module. Details see equipment instruction.

Limited Index

Note1: Feed equipment with 5V interface can pass motherboard current

Note2: This index ranges from different module. Please see user manual

Product diagram

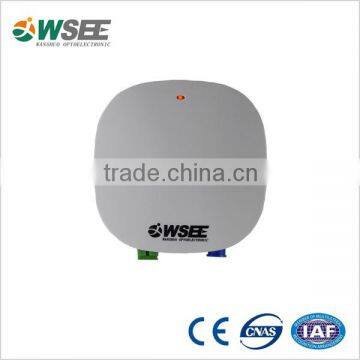

Product photo

Order guide

Optical Connector: SC/APC

F type: Female

Output number :one

AGC Range:0~-9dBm

Power adaptor:American standard or European standard

Certificate

Service & security system

1. All the products have proceeded aging test before shippment and we guarantee to use our products safety.

2. OEM&ODM order are warly welcome, we will try to support you for all kinds of customized requirements.

3. We could help to design and build the network if needed and offer various remote technical support.

4. Support imprint your logo on the produts.

5. We will protect the customer's sales area, ideas of design and all private informations.

6. Warranty 1 years. We guarantee that all products are free to be repaired or replaced during the warranty time and shipping cost at our charge.

7. We own the best after-sale service, if any problems happen, our team will do our best to solve for the customers.

Payment way

1. Escrow on line

2. T/T(bank transfer)

3. Paypal

4. Western union

5. Money gram

For bulk order, 30% deposit, the banlance 70% before delivey

Shipping way

1. Lead time, for samples, we will ship within 3 working days. For bulk order, within 7~10 working days(according to order quantity)

2. Ship ways, for samples, can be shipped by DHL, Fedex, UPS, TNT, EMS, China post and so on. For bulk order, can be shipped by ocean or air.
