4 way return path HFC network AGC Optical Receiver SOR800

Cable Tv return path 4 outputs optical receiver SOR800

Product application

OR800 optical receiver is an outdoor 4 outputs waterproofing receiver. It is mainly used in the building,

community or village with concentrated users and high level multi outputs distribution network. Also suitable

to used in the place where it is not convenient to take the electricity and single equipment drives many users.

It can work together with ONU or EOC to realize the network convergence. The pre-amplifier adopts GaAs

MMIC meanwhile the back amplifier adopts GaAs module, the optimization circuit design that match to high

performance index. The microprocessor control working status meanwhile LED digital display parameter that

makes more convenience operation and becoming main products in CATV network.

Performance Characteristic

1. Adopt waterproof aluminum shell and the waterproof level could reach to IP65 grade.

2. Double shield panel that can ensure the excellent EMC index.

3. Advanced GaAs low noise amplified circuit increases the receiving sensitivity.

4. Digital AGC control range +2~-8dBm, output level unchanged.

5. Microprocessor control working status, LED shows all parameters, convenience operation and high stability.

6. The tap and splitter can be exchanged.

7. AC - 60v has independent power supply port.

8. Two-stage attenuation, two-stage balance, network adjustment more freedom. Support return path or

return path can be reserved.

10. International general SNMP

Technical index

Note 3: Under the fixed link loss, 550 MHz has 59 PAL - D channel analog TV signals. Among 550 MHZ to 862 MHz,

every 2 MHZband transfer the digital modulation signals. It is tested when the digital modulation signal level is 10dBm

lower than analog hybrid module.  Pls refer to the user manual for details.

Limited index

Note 2: Different modules, the index will be different.  Pls refer to the user manual for details.

Note 1: In 60 v power supply optical receiver, the mainboard passing through current.

Schematic diagram

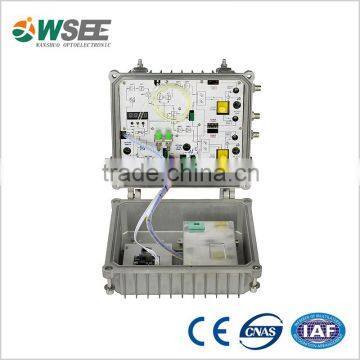

Product photo

Order Guide

Optical connector: SC/APC or FC/APC

RF connector: Male or Female

Power Voltage:60V or 220V

Bandwidth of the return path and forward path

Power adaptor:American standard or European standard

Certification

Package

Service & security system

1. All the products have proceeded aging test before shippment and we guarantee to use our products safety.

2. OEM&ODM order are warly welcome, we will try to support you for all kinds of customized requirements.

3. We could help to design and build the network if needed and offer various remote technical support.

4. Support imprint your logo on the produts.

5. We will protect the customer's sales area, ideas of design and all private informations.

6. Warranty 1 years. We guarantee that all products are free to be repaired or replaced during the warranty time and shipping cost at our charge.

7. We own the best after-sale service, if any problems happen, our team will do our best to solve for the customers.
