Home > Products > others > Open Type 40KVA/30KW Diesel Generators Powered by Cummins Engine With Two-wheeled Trailer

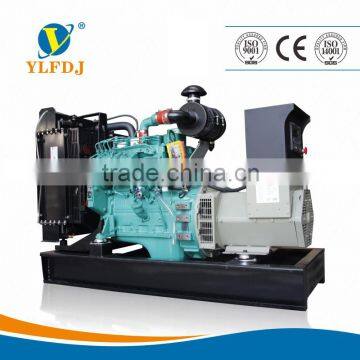

Open Type 40KVA/30KW Diesel Generators Powered by Cummins Engine With Two-wheeled Trailer
- GUANGZHOU
- T/T
You May Like
-
150KVA/120KW Power Generator With Cummins Engine With Two-wheeled Trailer
-
300KVA/250KW Turbocharging Diesel Generator Set Powered by Cummins Engine With Two-wheeled Trailer
-
Factory Price,350kva/280kw Generator 50hz/60hz Powered by Cummins Engine With Four-wheeled Trailer
-
500kw Diesel Generator Price Powered by Cummins Engine With Four-wheeled Trailer
-
Supply 750kva/600kw Diesel Generator Set Powered by Cummins Engine With Four-wheeled Trailer
-
400KW/500kva Diesel Generator for CUMMINS Powered by KTA19-G3 With Four-wheeled Trailer
Product Details
| Place of Origin | Guangdong, China | Engine Type | Diesel | |
| Type | Other |
Product Description
| Genset Model | YLGF-30 | |||||
| Genset | Power Capacity (kw/kva) | 30/37.5 | ||||
| Rated Voltage (V) | 400/230 | |||||
| Rated Current (A) | 54 | |||||
| Rated Frequency (Hz) | 50 | |||||
| Rated Speed (rpm) | 1500 | |||||
| Power Factor / Phase | Cos 0.8 Lagging, 3 phase | |||||
| Cooling System | Closed cycle water-cooled with fan,water tank | |||||
| Overall Dimension (L×W×H) (mm) | 2100 x 900 x 1300 | |||||
| Gross Weight (kg) | 1000 | |||||
| Engine Brand | Cummins | |||||
| Diesel Engine | Engine Model | 4BT3.9-G2 | ||||
| Prime Power (kw) | 30 | |||||
| Engine Structure | 4 Cylinder,Vertical,Inline,4 stroke | |||||
| Bore×Stroke (mm) | 102x120 | |||||
| Displacement (L) | 3.9 | |||||
| Compression Ratio | 17.5:1 | |||||
| Lube Capacity (L) | 11 | |||||
| Fuel System | PT type fuel injection pump | |||||
| Fuel Consumption (g/kw.h) | 208 | |||||
| Lube Consumption (g/kw.h) | 0.5% | |||||
| Rotating Speed (rpm) | 1500 | |||||
| Speed Governing | EFC machinery speed governor | |||||
| Starting Method | By 12V batteries | |||||
| Alternator Brand | YLFDJ | |||||
| Alternator | Alternator Model | YLW-30 | ||||
| Insulation Class | Class B | |||||
| Steady Voltage Regulation | ≤ +/- 0.5% | |||||
| Instant Voltage Ragulation | -15%~+20% | |||||
| Voltage Fluctuation Rate | ≤ +/- 0.5% | |||||
| Steady Frequency Regulation | ≤ +/- 0.5% | |||||
| Instant Frequency Ragulation | -7%~+10% | |||||
| Phase/Connection Type | 3 phase 4 wire/Y type | |||||
| Controller | Controller Brand | ZZ6110 | ||||
Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
