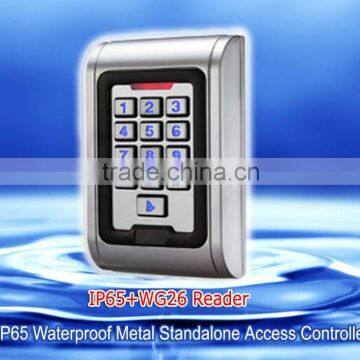

IP 65 Waterproof & Metal Standalone Door Access Controller used as WG 26 Reader alone

SA-100EM Waterproof Metal standalone access controller

1  1Perfect disign,payked with light, plated siver color,popular and fashion.
2.  Output with fuction of protection,waterproof and dampproof,it is fitting to use       outside..

3. strong standalone function device, can be used as WG26 reader alone.
4.   Capacity:2000 user's cards,2000 codes;
5.   Access ways : cards ,code,card +code.
6,   Low power :static current less than 30mA.
7,   Support only keypad ,
8,   users can reset private passwords.
9,   Search fast less than 0.1s .
10, Muti-fuction device,can use WG26 reader independent.
11, use keypad to delete lost cards for safety.
12, Short-circuit protect : when relay or alarm output short circuit, it will shut up        output in 100μS.

2. Technical parameters

Work Voltage:AC&DC9-28V
Static Current:≤30mA
Reading Range:3~8cm
Capacity: 2000 users
Environment Temperature:-25°C~60°C
Environment Humidity:10%~90%
Electric lock output:≤3A
Alarm output:≤20A
Output short-circuit protection time:≤100μS
Open-door time:0 ~ 99 seconds (adjustable)
Size:120 *80*25mm

Acousto-optic controled output ,anti-theft alarm inlay.can       connect with alarm
Anti-theft device in machine
Can add sevral continuous card
Waterproof degree:IP68

Type:             Card Frequency             Reading-Card distance

SA-100EM           125KHz                     5-15CM
SA-100Mifare         13.56MHz                  3-10CM
