Home > Products > Electronic Door Lock > em Door Lock

em Door Lock

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port HongKong or Shenzhen Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	crypton ODM Mag lock
Model Number	EM Lock Manufacturer

Product Description

single door magnetic lock

em door lock

electromagnetic lock with led

single door magnetic lock

Item	Parameter
EM Lock manufacturer	OEM company logo ODM customized
EL-100	100lbs Mini Magnetic lock
EL-100	100lbs Mini Magnetic lock
EL-350	350lbs Magnetic lock
EL-600	280KG Magnet Lock
EL-600S	600lbs EM lock with LED
EL-600ST	280kg Electric Magnet Lock with Led and Door Detection
EL-800	800lbs Magnetic Door Lock
EL-800S	380KG EM Door Lock with LED
EL-800ST	Magnetic lock with 800lbs holding force
EL-1200	EM lock 1200lbs

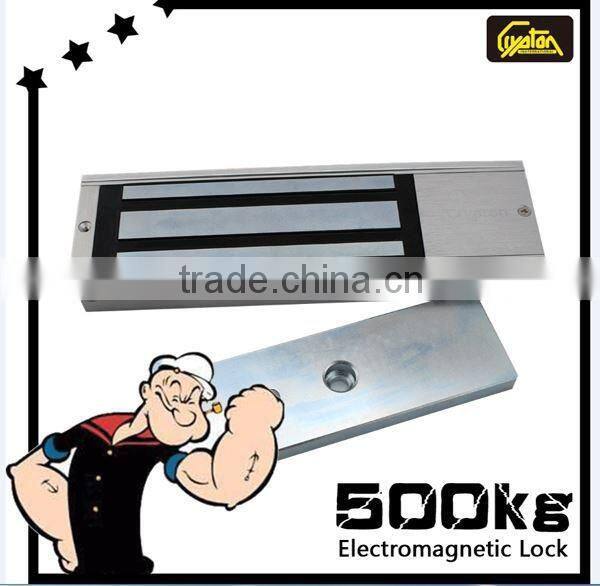

EL-1200S	500KG EM lock with LED
EL-1200ST	Single door 1200lbs Mag Lock
EL-350D	Double door Mag Lock 350lbs
EL-600D	Mag Lock Double door 600lbs
EL-800D	EM lock 800lbs Double Door
EL-1200D	500KG Double EM lock
Finishes for Shell	Anodized aluminum surface texture processing
Finishes for Magnetic	Zinc
Finishes for Armature	Zinc
Holding Force	280kg (600Lbs)
Voltage	DC12V or DC24V (adjustable)
Current Draw	12V/500mA 24V/250mA
Signal Output	Dry Contact, Max Rating of Contact Current 3A
Surface Temp	≤+20°C
Operating Temp	below 55 to above 55 (14-131F)
Suitable Humidity	0~90%(non-condensing)

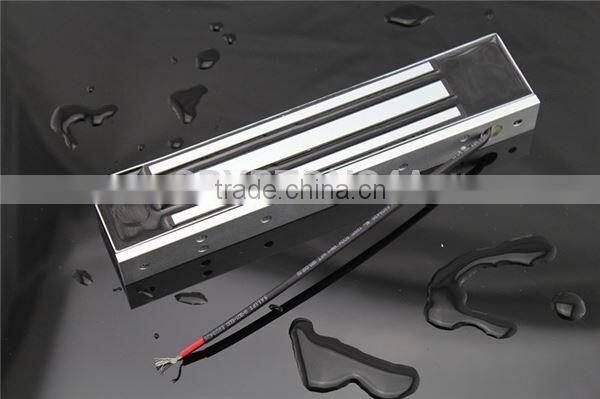

Picture show for single door magnetic lock


Azura will show how is the difference of magnetic lock, we took 280KG as for example:

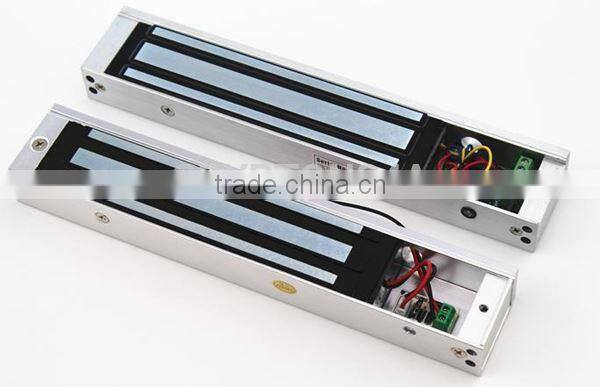

1:from design,appearance,there has no difference, this is original photos which we took it. Top one is EL-600ST A version: with 2 year quality guarantee. (factory default, we will ship this version) Then B version, this is 280KG locks, with postitive and negative,built in LED.
Ms Azura TAN ( Skype: crypton0929 ) ( E-mail: azura @ ) EM Lock manufacturer support OEM company logo ODM customized.

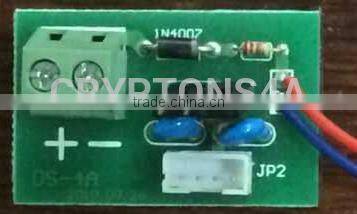

For better understanding,here is PCB board for Magnetic Lock
You see, it also 12V and 24V adjustable. This is A version EL-600 PCB board, So you could see the difference and know which Version you will take

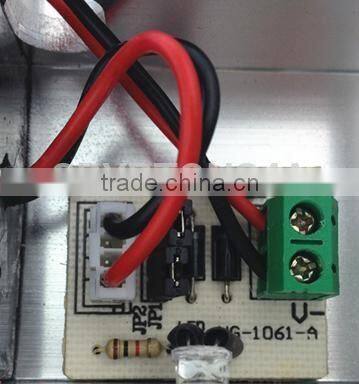

This is Crypton EL-600ST Magnetic Lock Details PCB board: 5terminals, + - NO,NC.COM built in LED. Time delay. 0 3 6 9seconds. 12V/24V

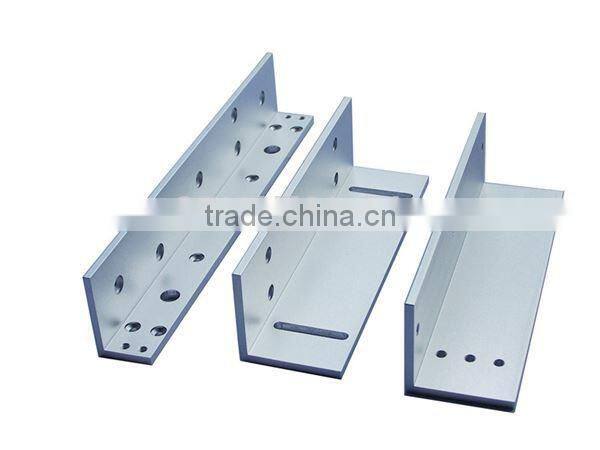

LZ Bracket for em door lock
LZ Bracket is for Inward Door 1: Material Selection: High Strength Aluminum, Sandblast Finished 2: Suitable for Door: In-swing Door 3: Opening Mode: 90° Degress Door 4: Finished for Shell: Anodized aluninum


U Bracket for electromagnetic lock with led
U Bracket is for Framelss Glass 1: Material Selection: High Strength Aluminum, Sandblast Finished 2: Suitable for Door: In-swing Door 3: Opening Mode: 90° Degress Door 4: Finished for Shell: Anodized aluninum

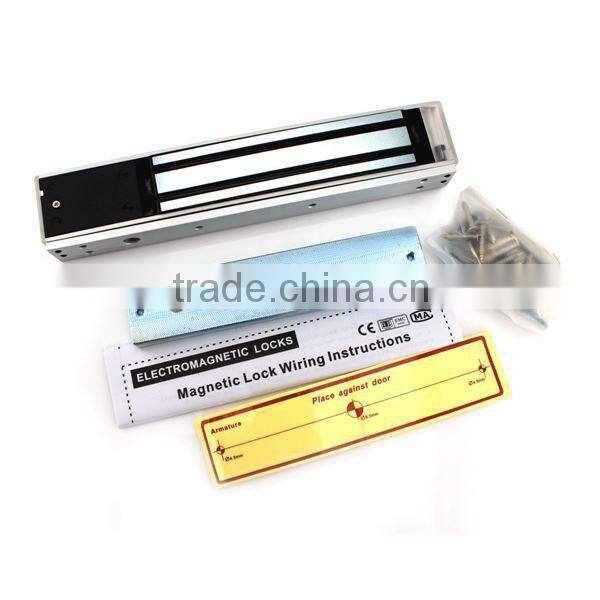

Package for Single Door EM Lock with LED(800lbs)


single door magnetic lock for Access Control System

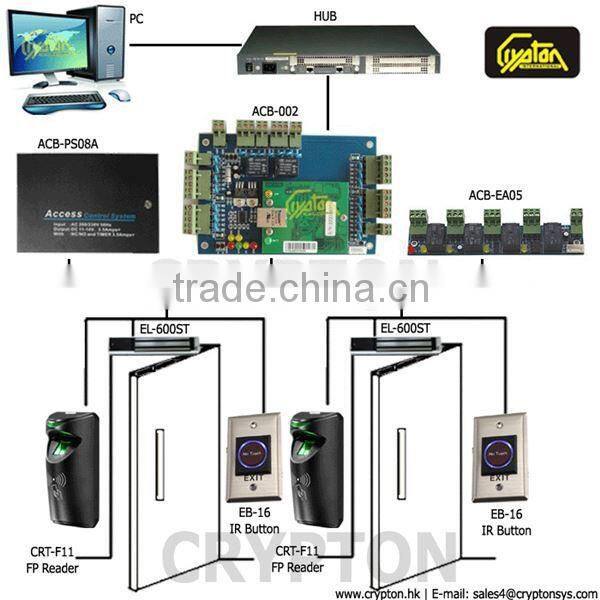

em door lock for TCP/IP Access Control Board

Crypton & S4A Provide Security Access Control System & accessories:

Access Control Board

(for single door, double door and four door support TCP/IP and web based

with free software to manage)

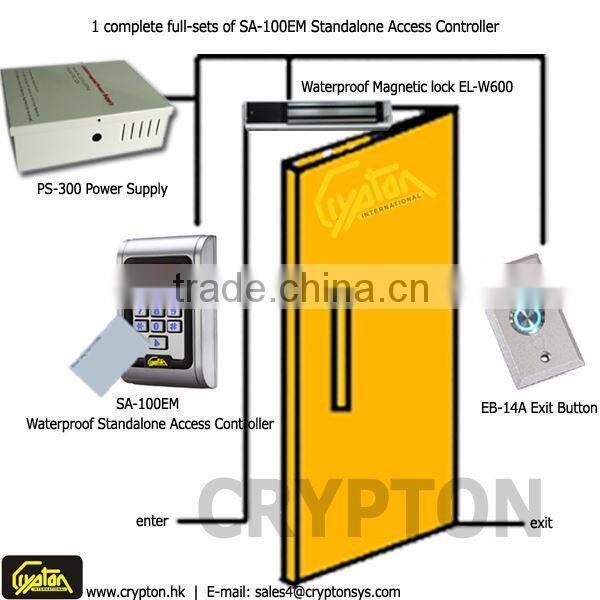

Standalone access control

(Easy to install and program without software)

Fingerprint access control&time attendance
(Easy to install and program with software and keep record)

Facial access control terminals
(Face to open the door or do record)

Guard tour probe

(Available with GPRS,3G,4G to customize)

Electromagnetic lock/Bolt lock/Strike lock

(available with OEM&ODM design)

Exit push button/Access Power supply/RFID cards

Proximity card reader

(125KHz and 13.56MHz)

Ms Azura TAN ( Skype: crypton0929 )

( E-mail: azura @ )

EM Lock manufacturer support OEM company logo
ODM customized
