Automatic Mini Concrete Batching Plant

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	janeoo
Model Number	HLS120G/180G/240G/270G/300G	Power(W)	210kw
Weight	75t	Certification	ISO9001,CE,CU-TR,CCC
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

automatic mini concrete batching plant

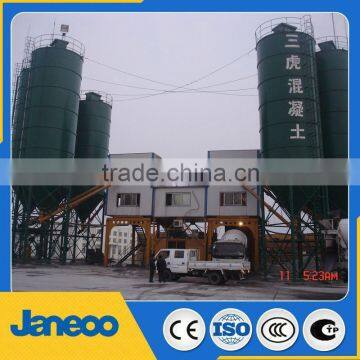

1. Product Show:

2. automatic mini concrete batching plant Specification:

Model		HLS120G	HLS180G
Theoretical productivity(m³/h)		120	180
Mixer	Model	JS2000	JS3000
	Power(kW)	2x37	2x55
	(m³) Discharge capacity	2	3
	Max.Agg.size(Gravel/pebble mm)	≤60/80	≤60/80
Belt conveyor capacity (kW)		800	800
Scales capacity and accuracy	Aggregate (kg)	4×(2000±2%)	4×(3000±2%)
	Cement (kg)	1000±1%	1500±1%
	Fly ash (kg)	400±1%	600±1%
	Water (kg)	400±1%	600±1%
	Additive (kg)	40±1%	60±1%
Discharging height (m)		4.0	4.0

3. Other Model Product:

4.Packing:

5. Company Information:

6. Our Advantages:

7. Main Buying Procedure:

Enquiry	contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion	specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation	Prices offered and accepted
Order	order as per contract or discussion
Proforma	Proforma invoice offered to double confirm the order for both-side records
Payment settled
Complete	Order completed under our arrangement
Ship	Goods shipped as per contracted term
Arriving	Goods arrive at local port or warehouse, depending on contracted term

8.Contact Information:

Shantui Janeoo Machinery Co., Ltd.: Contact nameamy zhao
Chat Now; Phone86-531-8815067; AddressNo. 268, South Duandian Road
