ACB-002 Double Door Controller Panel Manufacturer in China

A

Communication

TCP/ IP

B

Software support data base

SQL

C

Description

Control 2 door,entry&Exit by card&keypad or exit by hit button

D

Power Supply

12VDC; 4-7A

E

Power Consumption of Circuit Board

Less than 100mA

F

Input Format of Reader

Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)

G

Quantity of Readers

4

H

Door Controlled

2

I

Door opening time extending setting

1-600 Seconds(adjustable)

J

Max q ' ty of controller

Unlimited

I

Operation Temperature

-40°-70°

II

Operation Humidity

10-90 % RH ,No Condensation

III

Q ' ty of users

20,000 Users

IV

Q ' ty of Event

Buffers(offline) 100,000 Event Buffers

V

Power interruption

protection measure High Speed Memory, Records never lose

VI

Max Distance

from Reader to Controller 100M (suggestion distance 80m)

VII

Max Distance

between Controllers Depand on network range

VIII

Collocations

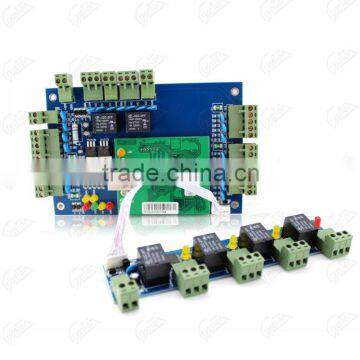

PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton

VX

Alarm functions

Alarm for long time door open, ilegal break in, intimidate

X

Fire and alarm linkage

If no connection with the expansion board,,only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

1

Offline operation; real time supervision; photo display

mass storage,remote unlocking

2

flexible user privilege setup;multi-user supervision;quick set

card+password unlocking

3

convenient checking and query,report exported to excel

alarm for long time unclosing

4

revisable and printable report form,unlocking at definite time

report form

5

larm for invalid card swiping,alarm for illegal break in

first card unlocking

6

nomal shift&multi-shifts time attendance management

power supply station

7

fixed ration dining management system

interface locking,interlocking

8

meeting attendance management system

intimidation alarm

9

Online patrol management &security alarm management

multi-card unlocking

10

professional users such as bank,cash house,prison

telecom station,plice station

11

integrated fire control,anti-passback and anti-tail;

emergency double locking

12

 unlocking based on internal and external validation.

in door population checking

Complsive open and close door at long time

√

Open door in remote distance

√

Inter block

√

Anti pass back and tail

√

Multi-card open door

√

Open long time at specified time

√

Electronic map

√

Urgency locking

√

First card unlocking

√

Unlock based on internal and external validation

√

Keypad (card+passwor, supper password)

√

Unit Size

160mm x106mm

Unit Packing Way

Brown box

Unit Packing Size

273mmx228mmx65mm

Accessories

User Manual, warranty card
