HZS40 E Mini Concrete Mixing Plant Machine

FOB Price

US$ 35,000 - 45,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	JANEOO
Model Number	HZS 40E	Power(W)	76kW
Dimension(LWH)	250001100014000	Weight	17t
Certification	ISO9001,CE,CCC,CU-TR	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

HZS40 E mini Concrete Mixing Plant Machine

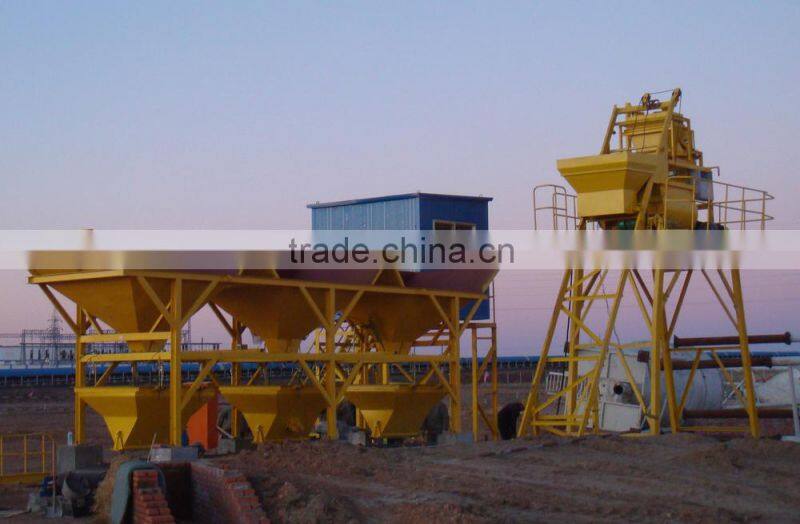

1. Product Show:

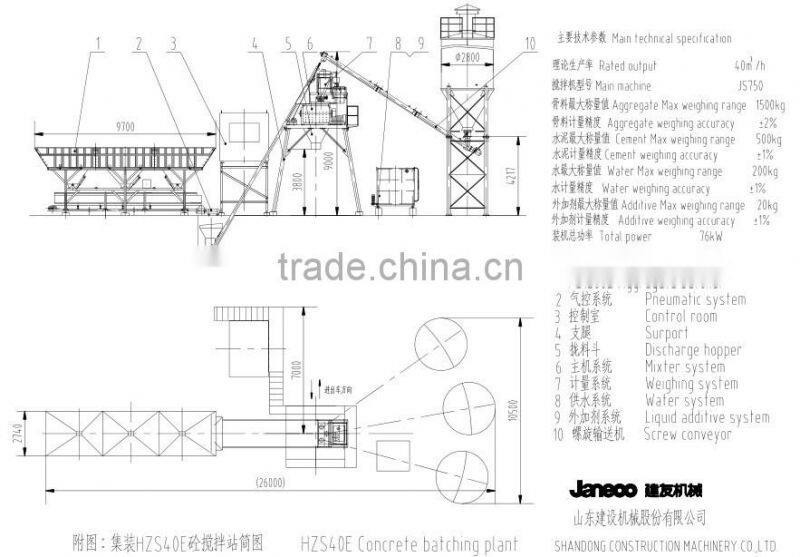

2. Product Specification:

Model		HZS25E	HZS40E	HZS50E	HZS75E
Theoretical productivity(m³/h)		25	40	50	75
Mixer	Model	JS500	JS750	JS1000	JS1500
	Power(kW)	18.5	30	2x18.5	2x30
	Discharge capacity(m³)	0.5	0.75	1	1.5
	Max.Agg.size(Grave/pebble mm)	≤60/80	≤60/80	≤60/80	≤60/80
Agg.bins	Volume (m³)	4	4	8	8
Hoisting motor power (kW)		5.5	7.5	18.5	22
Scales capacity and accuracy	Aggregate (kg)	1500±2%	1500±2%	2500±2%	3000±2%
	Cement (kg)	300±1%	500±1%	500±1%	800±1%
	Fly ash (kg)	—	—	150±1%	200±1%
	Water (kg)	150±1%	200±1%	200±1%	300±1%
	Additive (kg)	20±1%	20±1%	20±1%	30±1%
Discharging height (m)		4.0	4.0	4.0	4.0

3. Other Model Product:

Supporting Facility:

Cement cement bag breaker

4. Packing:

5. Company Information:

6. Our Advantages:

7. Main Buying Procedure:

Enquiry	contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion	specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation	Prices offered and accepted
Order	order as per contract or discussion
Proforma	Proforma invoice offered to double confirm the order for both-side records
Payment settled
Complete	Order completed under our arrangement
Ship	Goods shipped as per contracted term
Arriving	Goods arrive at local port or warehouse, depending on contracted term

8. Contact Information:

Shantui Janeoo Machinery Co., Ltd.: Contact nameamy zhao
Chat Now; Phone86-531-8815067; AddressNo. 268, South Duandian Road
