Wireless Access Control Card Reader WR-111

Wireless Access Control Card Reader WR-111

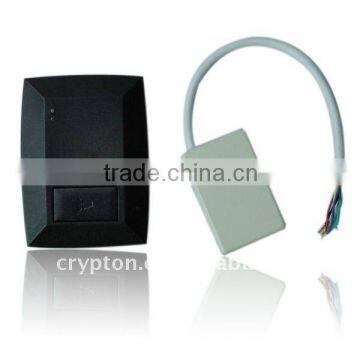

WR-111 wireless card reader mainly composed of two parts: card readers and signal receiving box

Working Principle: WR-111 wireless card reader mainly composed of two parts: card readers and signal receiving box. Card reader is the part of sweep card, it uses lower-power general encoder encoder state of the address frame is sending through RF, at most 13 bit address code, to avoid misuse of data sent or re-issued, card reader's main role is sending staff card after it encrypted to signal receiving box through RF. Signal receiving box will decode the encode which send back from card reader. Then transfer to wiegand transmission to access control and time attendance terminal. Signal receiving box usually installed with access control terminal to reduce wiring work.

Product features:

1:Card readers: wireless transmission, without wiring, easy to installation

2:Lower consumption, only 2(AA) battery

3:Attractive appearance, suitable to installation for various environment

4:Comes with wireless doorbell functions

5:Receiving box: standard wiegnad26 output interface, coupled with a variety of access control and time attendance terminal use

6:Easy install, compact design, can be embedded in access control and time attendance products.

Parameter:Card reader

1:Size: 110 X 80 X 25 mm

2:Weight: 120g

3:Voltage: 1.5V(AA)X 2

4:Receiving distance: 20m

Receiving box

1:Size:70 X 45 X 30 mm

2:Voltage: DC9-15W

3: Weight: 100g

...
